Electric circuit and power sockets
2025-12-06
electric, circuit, power, sockets
- Assess the total number of PCs planned for the center and plan electrical load distribution accordingly.
- Install proper grounding throughout the entire facility to ensure safety and stable operation of all equipment.

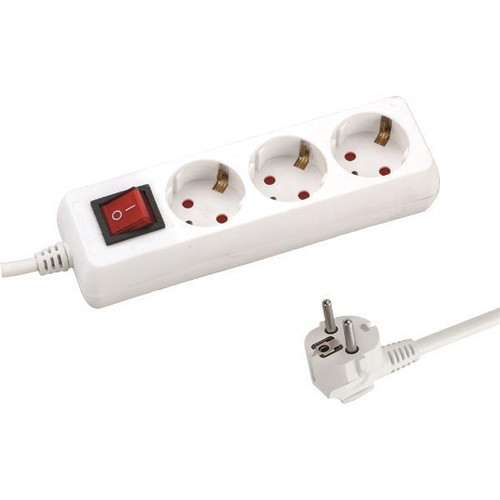

- Rather than relying solely on central surge protection, each PC receives its own dedicated, filtered power source through a high-quality 3-socket surge-protected extension unit. (Figure 1)
Figure 1
- For each PC station, provide one socket for the PC case, one for the monitor, and an additional spare socket for accessories if allowed by local regulations.
- Prepare electricity during construction or renovation by having a certified electrician install circuits directly from the main electrical panel.
- Use separate power cable lines so that each line supports a reasonable number of PCs, ideally one power line for every five PCs.
- Avoid using a single power cable line for ten PCs, as this may overload the circuit and create safety risks.
- Create a dedicated power cable box for each group of connections, ensuring clean and organized distribution.
- Ensure each connection includes a socket with four pins, following electrical safety standards and local regulations.
- Have the electrician verify load balancing across all circuits to prevent tripping and protect equipment.
- Prepare a layout that makes future maintenance easy, with accessible wiring, clear labeling, and structured cable routes.
- Conduct a final inspection and testing phase to confirm that all sockets, grounding, and protections are functioning correctly.
