Select BOOT PXE

2024-01-16
PXE, boot, image

The following provides guidelines on selecting appropriate PXE boot options for both legacy and UEFI boot modes

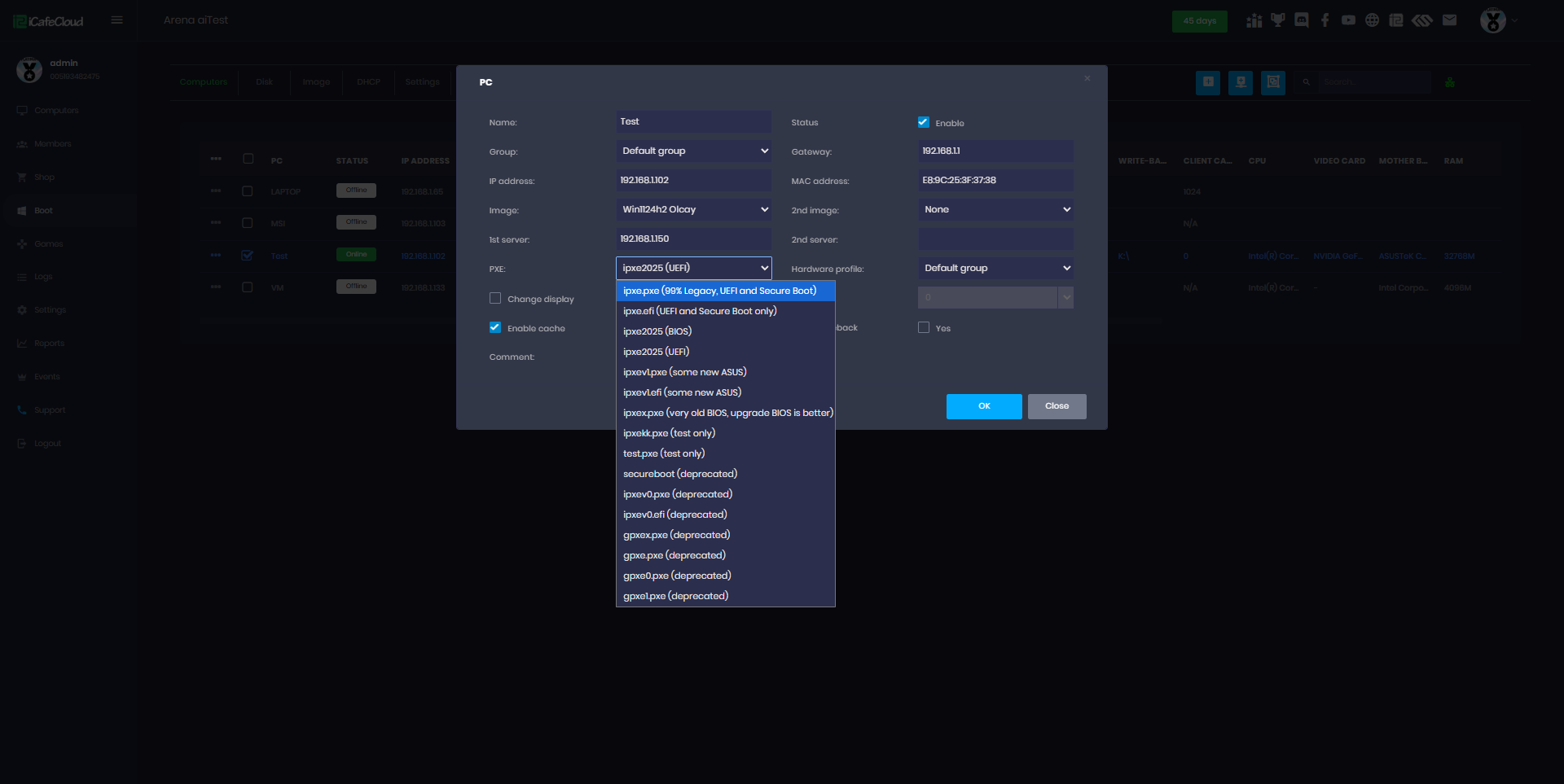

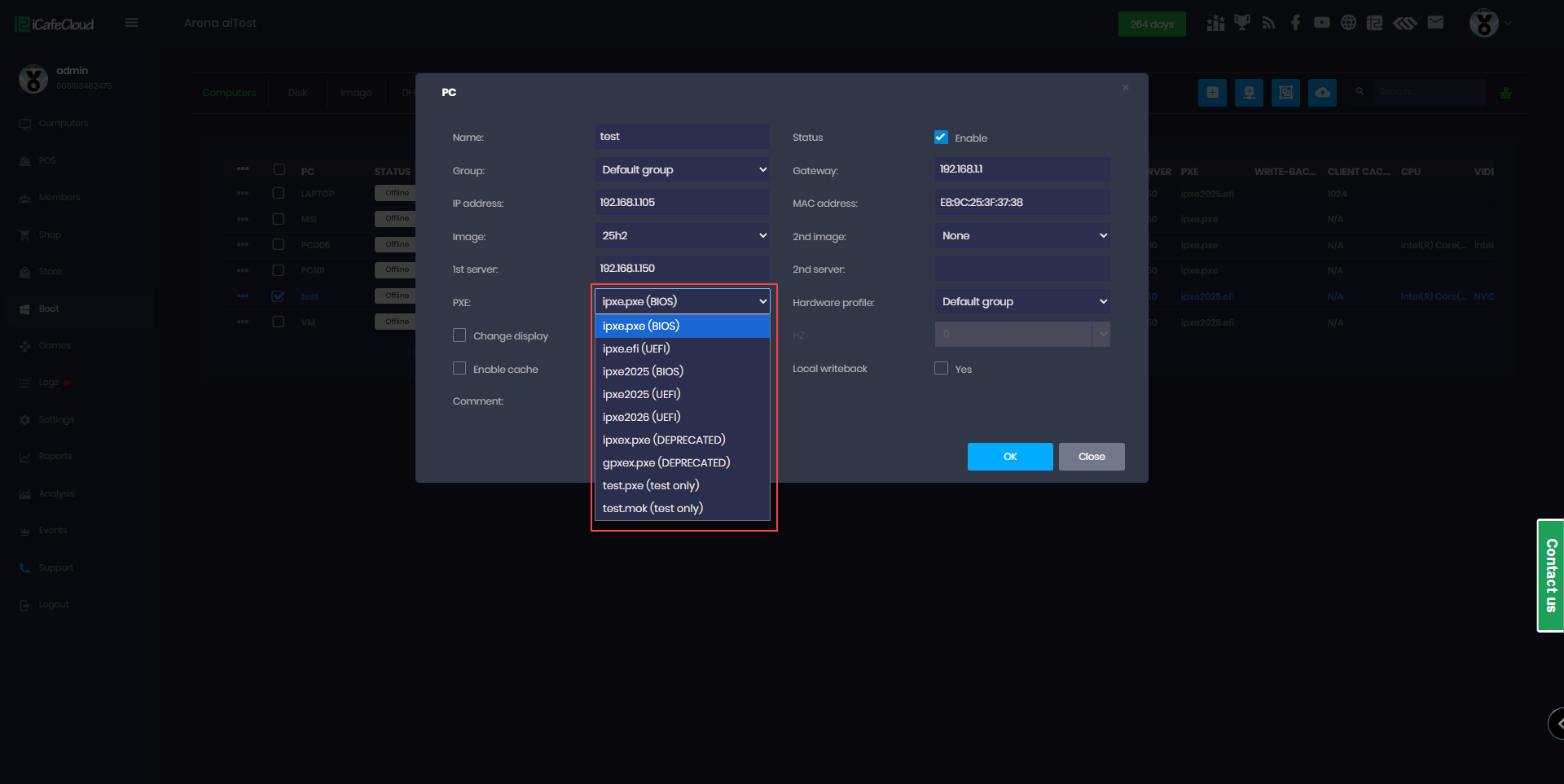

After creating an image, You need to select PXE booting in Cloud Panel.

  1. For Legacy boot:
    ipxe.pxe - default and supports most of motherboards
    Ipxe2025 (Bios) - Latest PXE update for Legacy
    ipxev0.pxe - It’s the current version of default and supported most motherboards
    ipxev1.pxe - It's a new version of pxe and supports new motherboards or ASUS.
    gpxe.pxe, gpxex.pxe, gpxe0.pxe, gpxe1.pxe - For very old motherboards. Especially, please use gpxex.pxe if you encounter a read stop at 400K problem.

  1. For UEFI boot:
    ipxe.efi - default and  supports most of motherboards
    Ipxe2025 (UEFI) - Latest PXE update for UEFI
    ipxev0.efi - It's the current version of default and supports most motherboards and secure boot.
    ipxev1.efi - It's a new version of pxe and supports new motherboards or ASUS and secure boot.

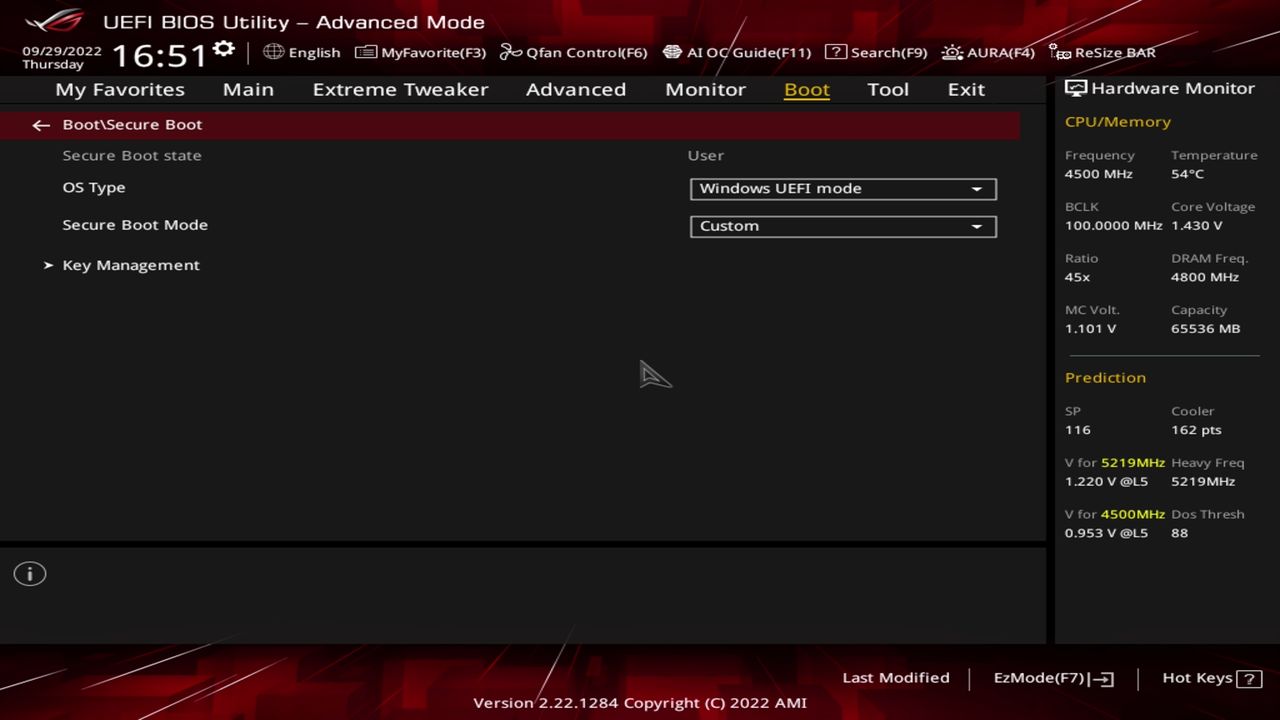

    secureboot - support secure boot

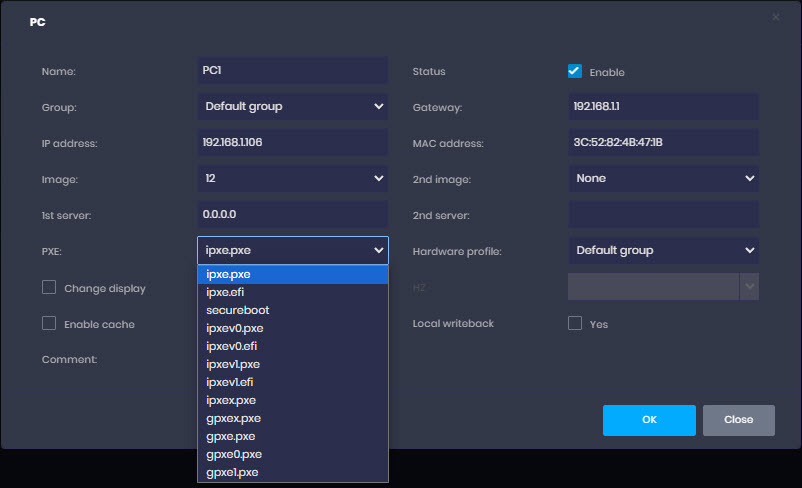

Figure 1

  1. If there is a delay on the PXE page when booting client PCs, we recommend starting Super Client and reinstalling CCBootClient.
