The following guide explains common causes of network boot failures and the "Boot Failed. Please check the image file or network" error when booting a client PC through CCBootCloud. In some cases, changing the BIOS Secure Boot OS Type to Other OS can resolve the issue.

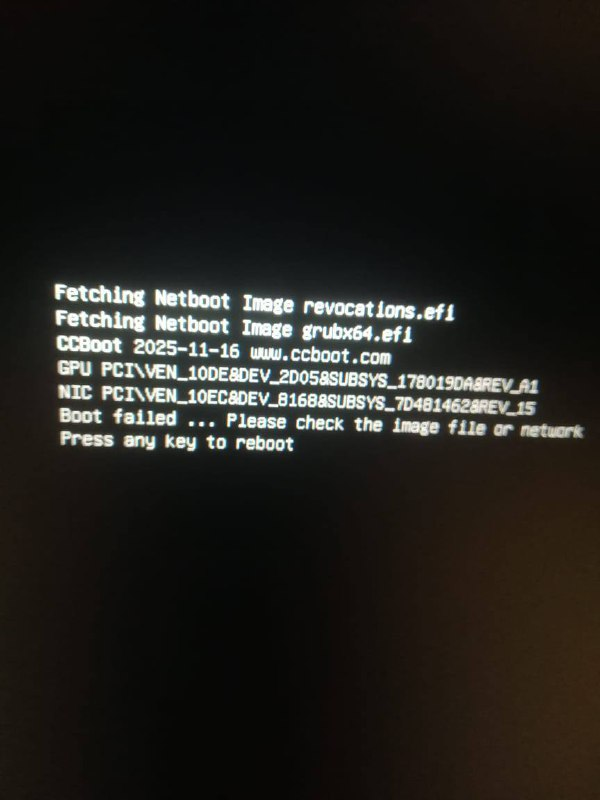

  1. If you get an error as Boot failed … please check the image file or network. This issue occurred after the PC name was changed. (Figure 1)

Failure of booting from network

Figure 1

  1. On ASUS motherboards If you are using a new image and encounter the "Network or Image Files Error", do not disable and re-enable Secure Boot but instead follow the steps below.
    Enter the BIOS and navigate to
    Secure Boot.
    Change
    OS Type to Other OS.
    Boot from the image once. It should boot successfully.
    Return to BIOS and change
    OS Type back to Windows UEFI.
    Boot again. - Success

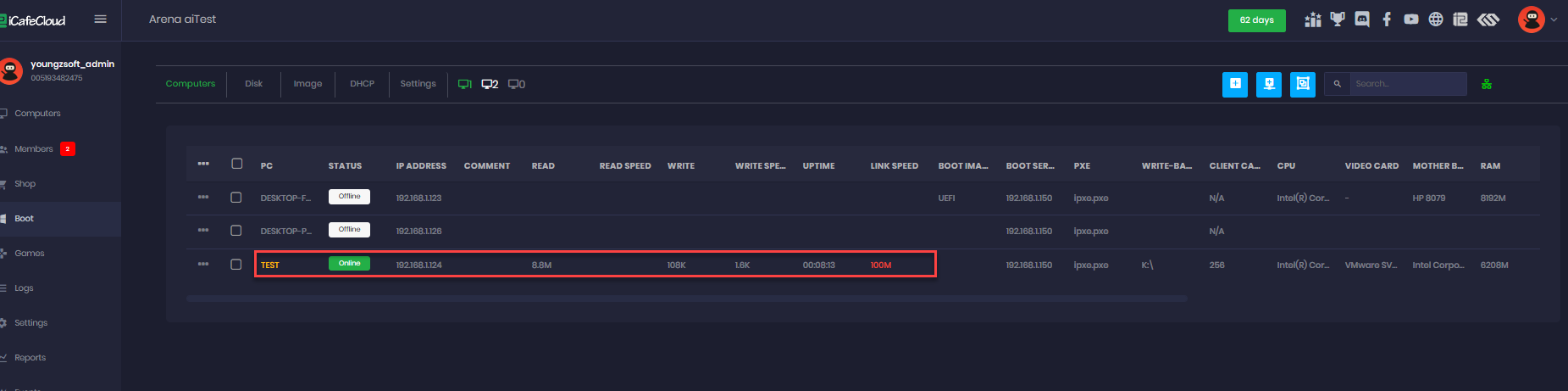

  1. PXE boot failure was caused by PC name conflicts in CCBoot.

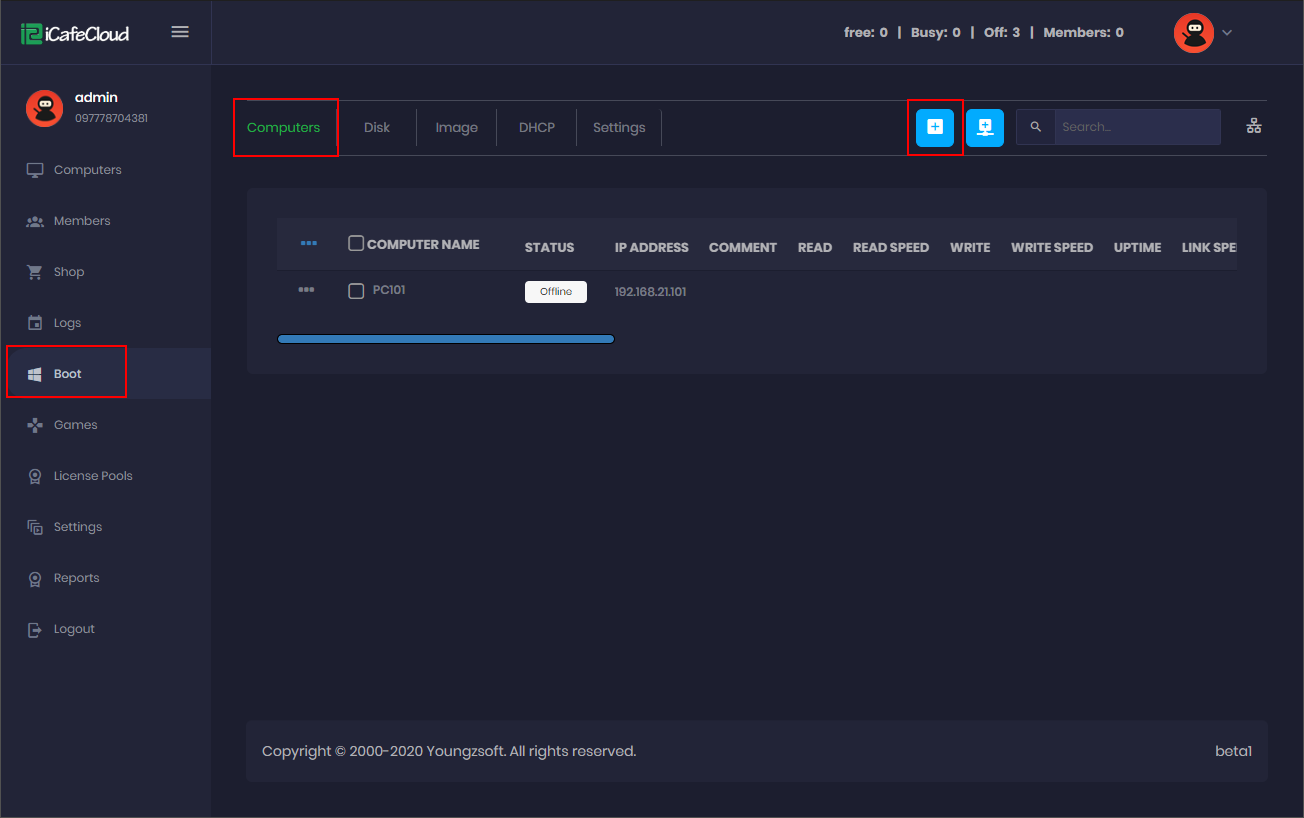

  2. Always delete a PC from the Computer Page before renaming it.

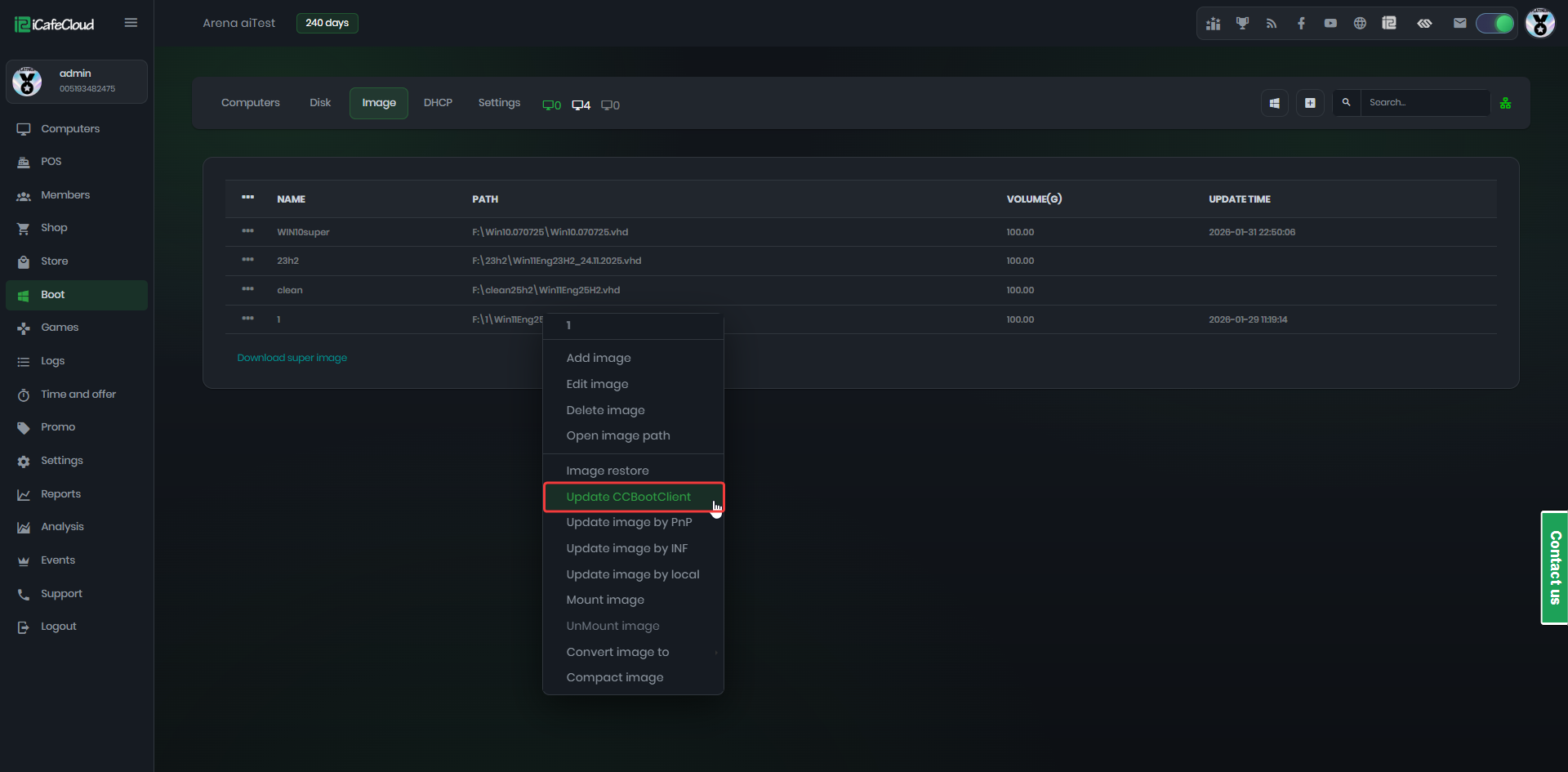

  3. After major CCBoot upgrades, updating the client version may be sufficient to fix PXE boot issues.(Figure 2)

Failure of booting from network

Figure 2

  1. The BIOS setup is in a mess, please reset up the BIOS.
  2. Because the connection between the RAM and the main board is not good. Please wipe the gold fingers in the RAM.
  3. The network cable may not be properly connected. Unplug and reconnect it, then try a different port on the switch to confirm.

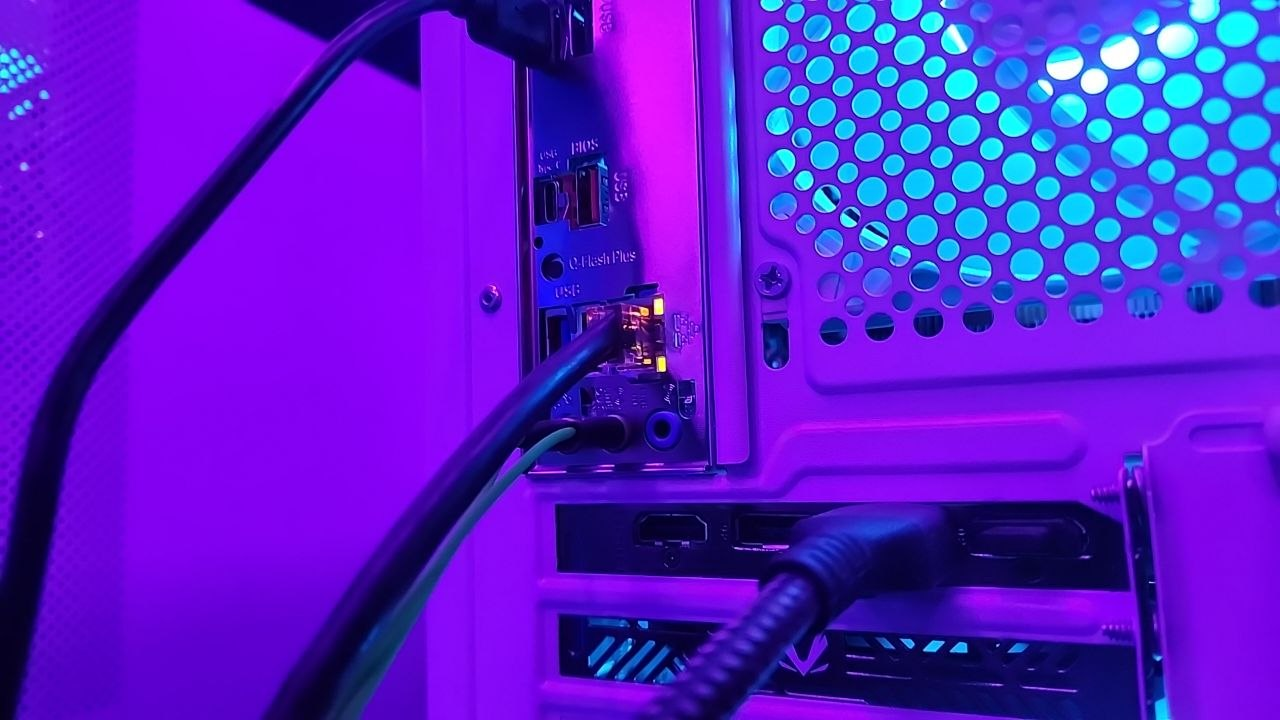

  4. Not working cable (Figure 3)

Failure of booting from network

Figure 3

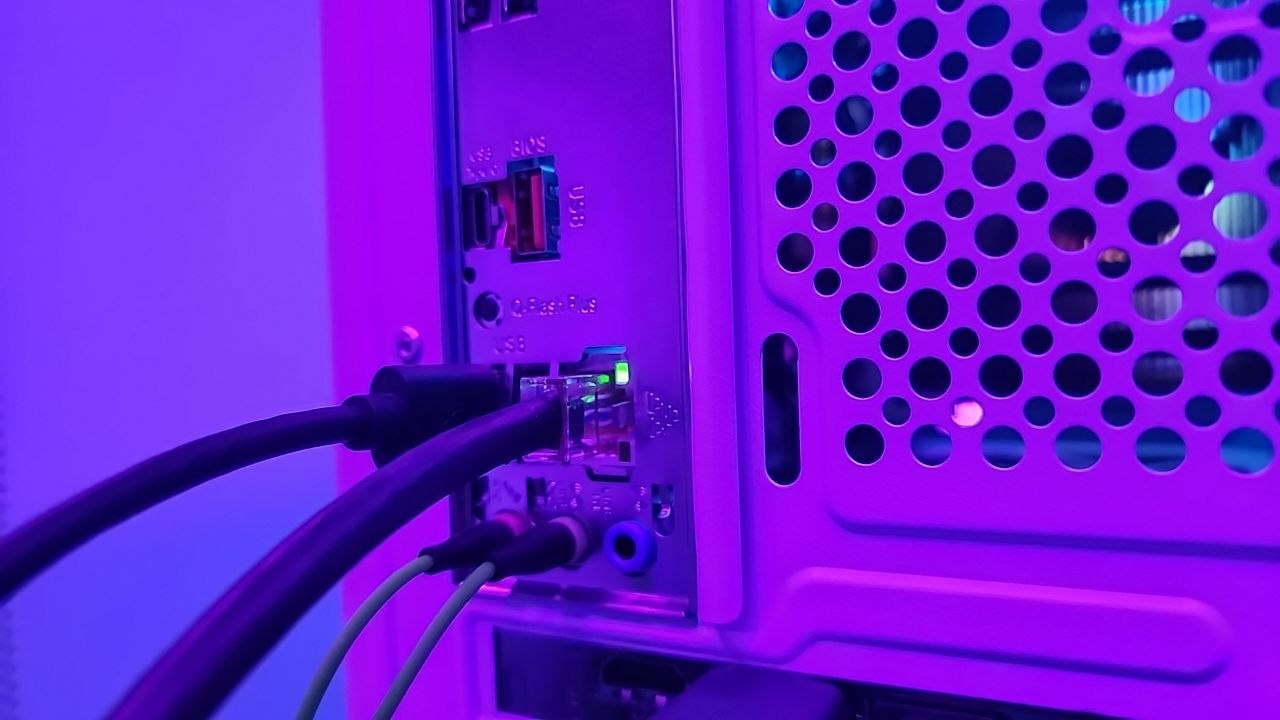

  1. Working cable (Figure 4)

Failure of booting from network

Figure 4

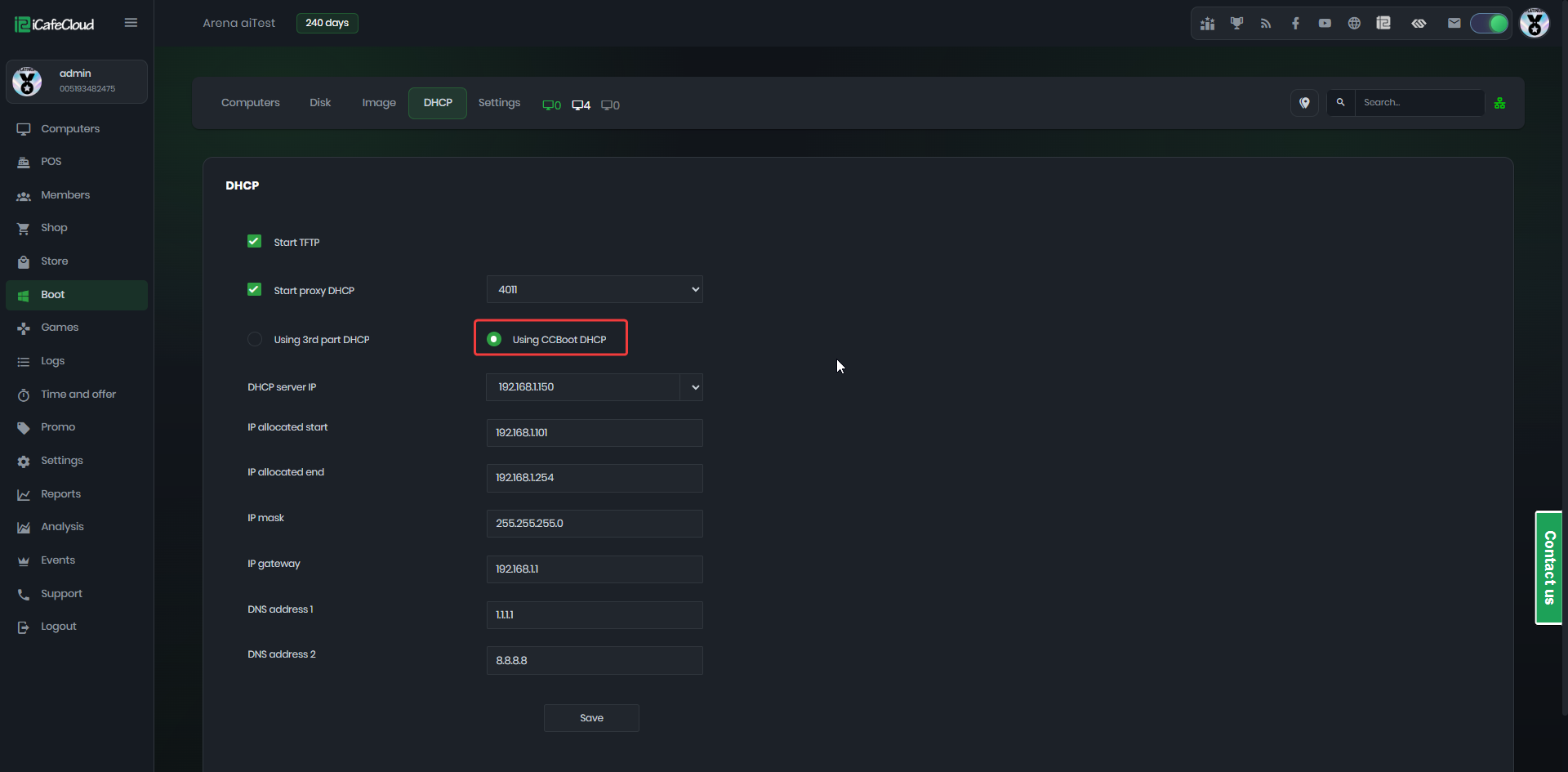

  1. A third-party DHCP server can cause the PC to get stuck with a boot failed error. Switch to CCBoot DHCP and try booting the client PC again. (Figure 5)

Failure of booting from network

Figure 5

  1. Sometimes the client does not boot, even after checking all possibilities in the server. This means the issue is with the network switch, you need to power cycle the switch (turn off/ on) once. After that clients will boot fine. If this happens frequently. We recommend replacing the switch with a better one.
  2. The electricity in the BIOS battery is not enough.
  3. Clients will fail to boot if the IP address of the client PC is conflicted with another PC or device (WiFi Extender, router, or mobile devices). If this happens please change the IP of the devices and reboot the client.
