TFTP Open Timeout Error

2024-01-31
tftp, error, timeout

The following provides troubleshooting steps for resolving "TFTP open timeout" errors during diskless booting in CCBootCloud

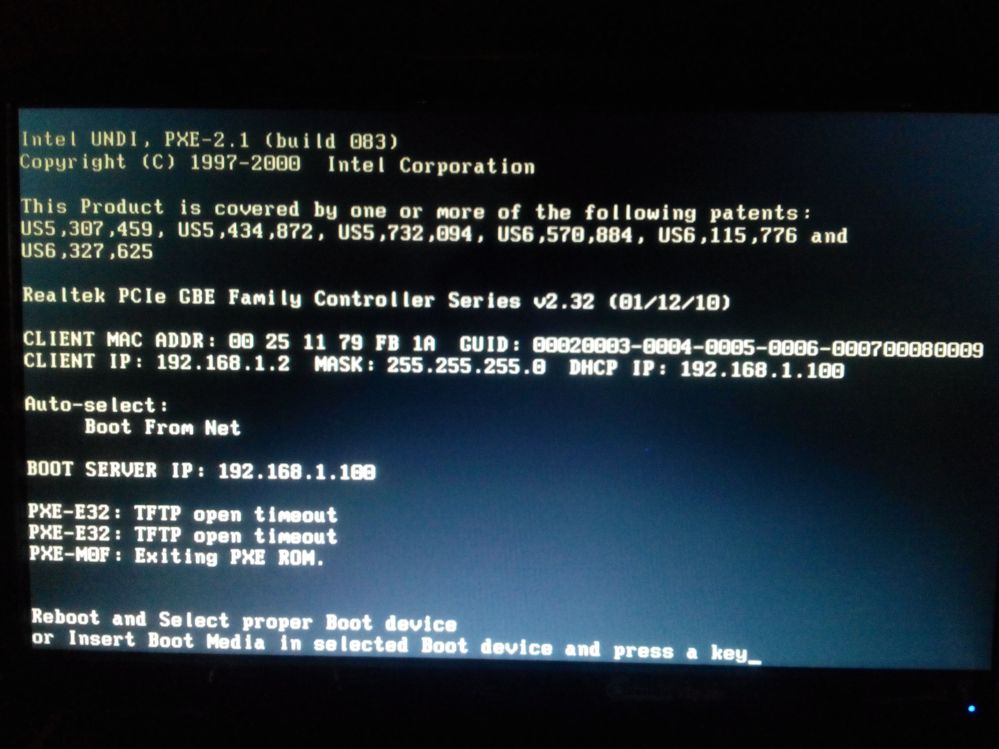

When trying to diskless boot a client, it stops booting by giving the following message on the screen.

PXE-E32:TFTP open timeout

PXE-E32:TFTP open timeout

PXE-E32:TFTP open timeout

PXE-M0F:Exiting PXE ROM.

DISK BOOT FAILURE INSERT SYSTEM DISK AND PRESS ENTER

When CCBoot server starts sometime it is not able to get IP from server NIC to set in CCBoot as DHCP/TFTP server IP. This leads to "TFTP open timeout" error.

  1. Just restart CCBoot service to fix it.
  2. If this problem is about network optimization, please re-enable large send offload (Figure 1).

Figure 1

  1. Try to downgrade the BIOS and Realtek boot agent version. For example, downgrade Realtek boot agent v.2.32 to v.2.24.

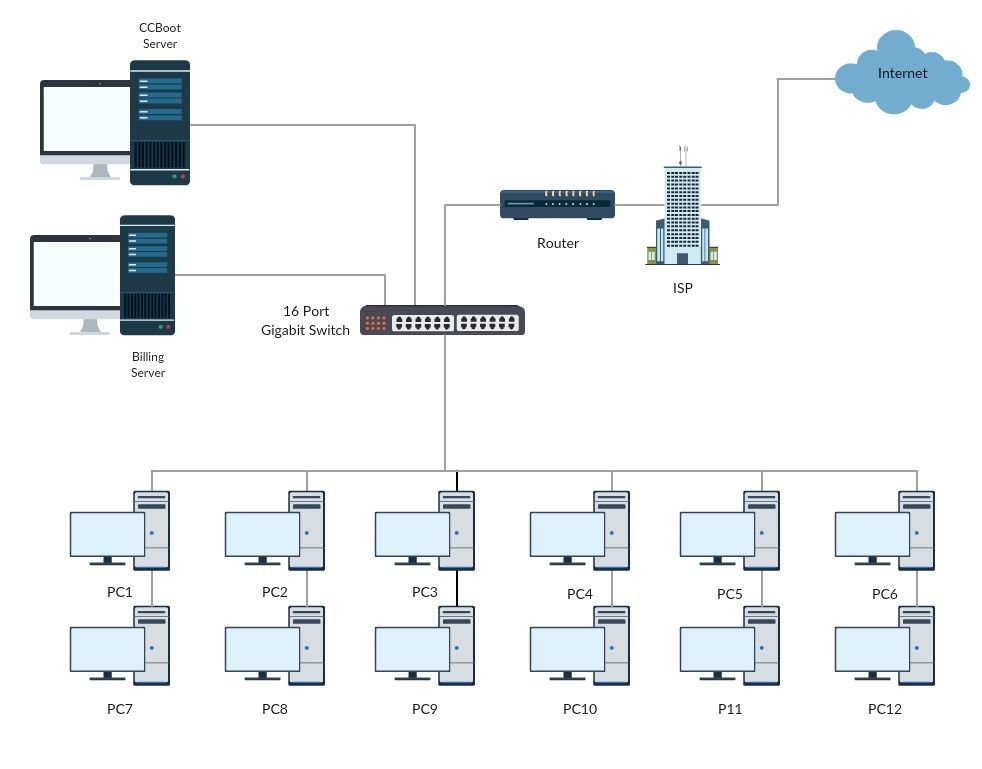

  2. Try to disable your router's DHCP and the CCBoot server should only be your DHCP provider.
  3. If Router’s DHCP Server cannot be disabled on your network, then try to adjust your routers IP range assignment far from your CCBoot start and end IP range, sometimes this can also cause “PXE-E32: TFTP open timeout” error.

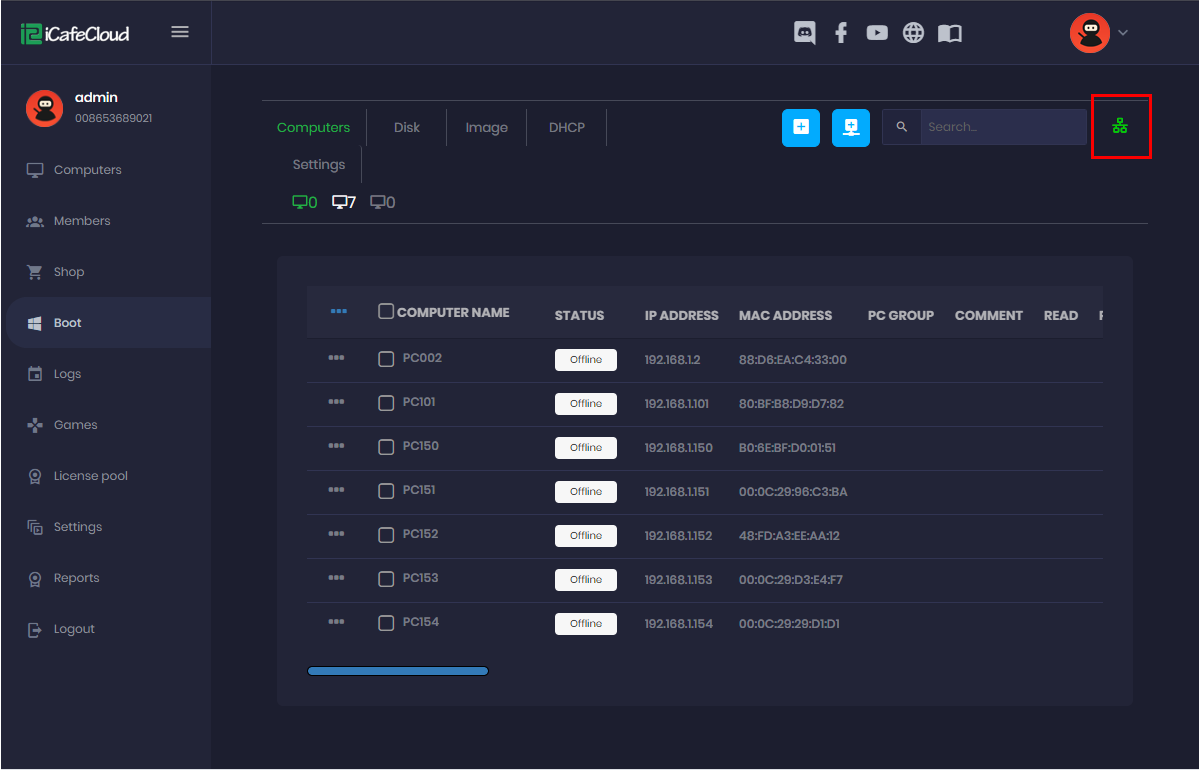

  4. When CCbootCloud server does not have a connection for a few hours to the cloud, check your firewall and internet connection on the server side. The CCBootCloud server status should have a green color (Figure 2).

Figure 2
