TRedFilterCafe and WinpkFilter boot failed

TRedFilterCafe, WinpkFilter, boot, failed

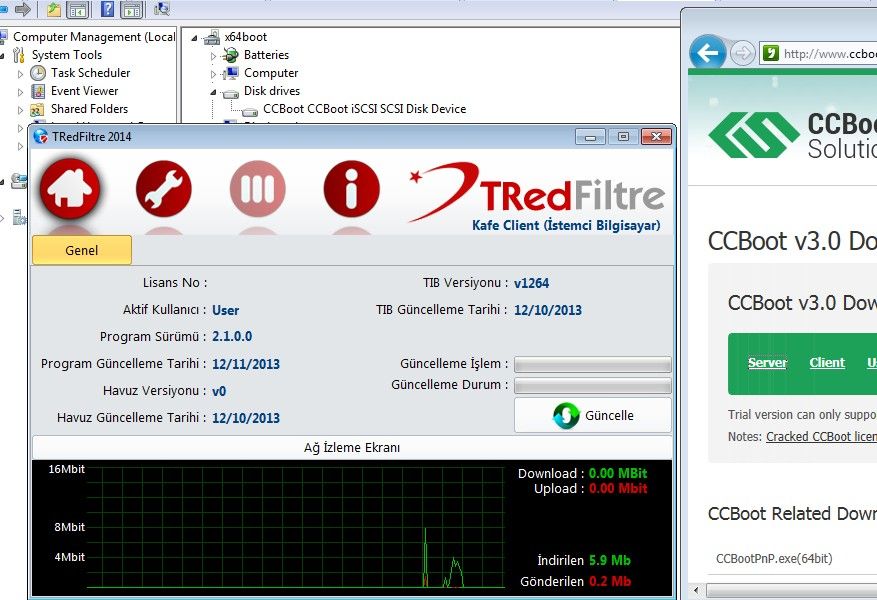

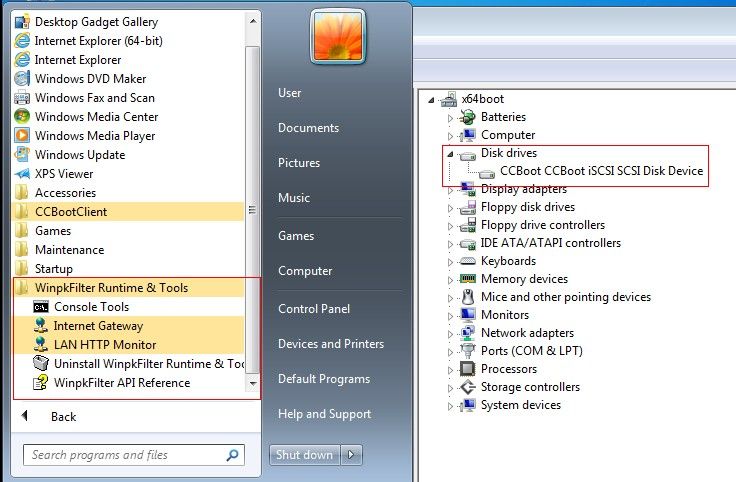

If you are using TRedFilterCafe, you will encounter boot diskless failure. TRedFilterCafe is based on WinpkFilter drivers. So, we need to make some changes in registry.

  1. Boot the master PC with HDD.
  2. Install TRedFilterCafe. (Notes, you should install TRedFilterCafe before CCBootClient)
  3. Navigate to HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\services\ndisrd.
  4. Change "Start" to 0.
  5. Install CCBootClient.

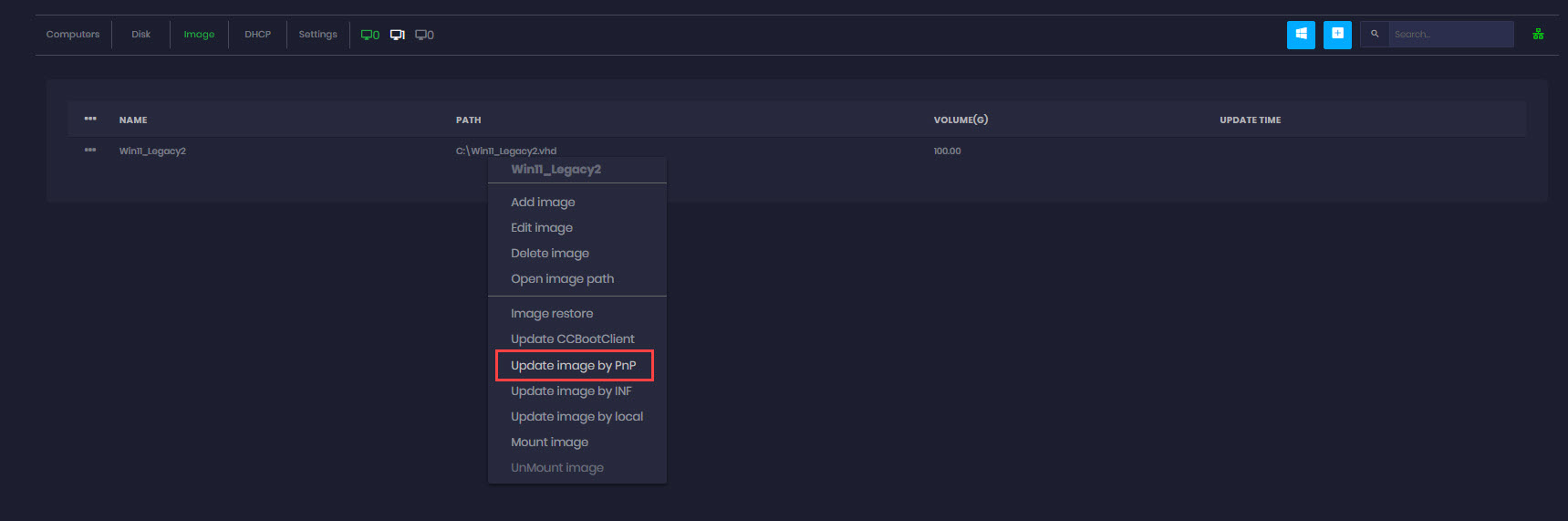

  6. Upload image.

Note: If you are using CCBoot v3.0 latest version (server and client are version 20140827 or later), you do not need to modify the registry any more. More information about TRedFilterCafe and WinpkFilter drivers please refer to this.
