Successful Cases Indonesia Internet Cafe (Fullhouse) CCBoot Case

Indonesia Internet Cafe (Fullhouse) CCBoot Case

Thanks for Yono Sucipto, one of our CCBoot resellers in Indonesia, provides these information about Paul Tambanon's successful deploy of diskless solution CCBoot in his FULLHOUSE Internet Cafe. Thanks for all your supports, with your trust, we can do better.

Reseller Yono Sucipto Contact Information

Contact Person: Yono Sucipto

Phone: +628128757860

E-mail: [email protected]

Adress: Jendral Sudirman no. 549 East Prabumulih, South Sumatera, Indonesia

Blackberry messenger: 7B7371F5

YM: toystoys_hitam

End Customer Paul Tambanon Contact Information

Cafe Name: FULLHOUSE (84 PCs)

Cafe Owner: Paul Tambanon

YM: [email protected]

PIN: 7DB067D4

Address: Jln. Songsi Raya (Pekapuran 2) No.5 RT/RW 003/06, Jembatan Lima, Kecamatan Tambora, Kelurahan Tanah Sereal, 11210 Jakarta Barat, Indonesia

Server Specifications:

 (2pcs Server) OS Server 2012 Standard, i5 4460 CPU 3.20 GHz, MSI H97 Gaming 3, 8GB x 4pcs DDR3 PC12800 Memory, 256GB SSD (OS + Image), 128GB SSD (SSD Cache), 256GB SSD (WriteBack01), 256GB SSD (WriteBack02), 256 GB SSD x 2pcs RAID 0 (GameDisc), 4 Pcs Gigabit LAN Card (LAN Teaming), 700 watts pure Power Supply, UPS 1500va, Deep Cooler Gammaxx400 Cooper base, HP Gigabit Switch, Smart Billing GWarnet Server & Client Ver.20141014.007

Server 01 handle 54pcs Clients in 1st Floor, Server 02 handle 30pcs Clients in 2nd Floor

Client Specifications:  (84pcs Clients) OS Windows 7 Ultimate x64, AMD A6 6400K APU with Radeon (tm) HD Graphics, Gigabyte Technology GA-F2A58M-DS2, 2GB x 2pcs DDR3 PC12800 Memory (Dual Channel kit), VGA HD 6570 2GB DDR3 graphics, 22” LED LCD, Logitech Keyboard & Mouse, Dual Graphics setting Enabled

Fullhouse Internet Cafe

Figure 1-1

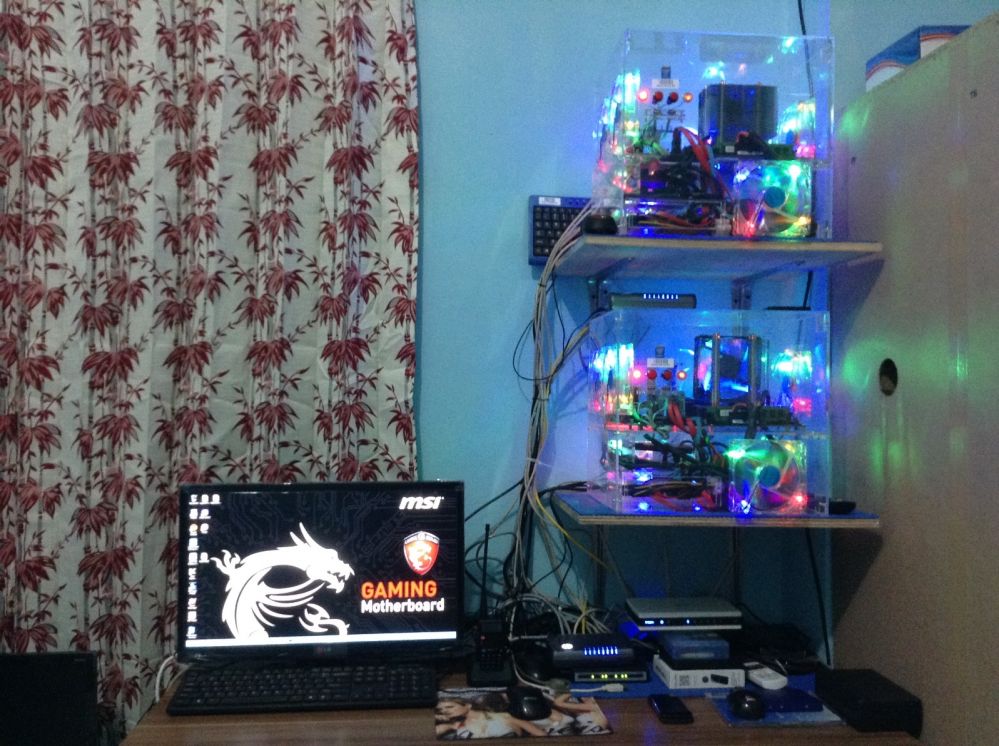

Server Picture

Figure 1-2

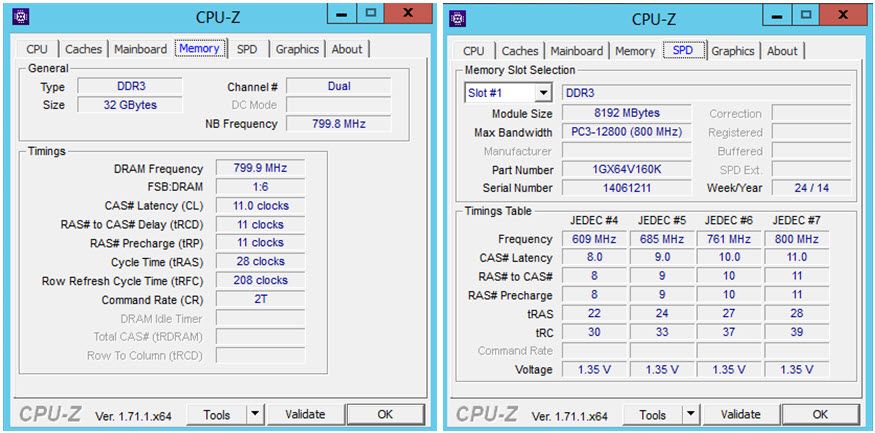

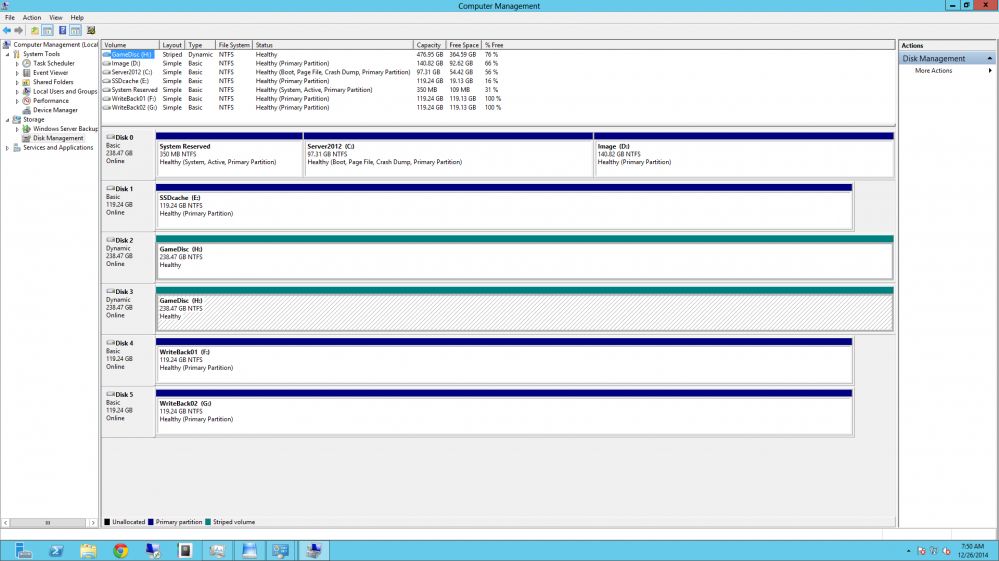

Server Specifications

Figure 1-3

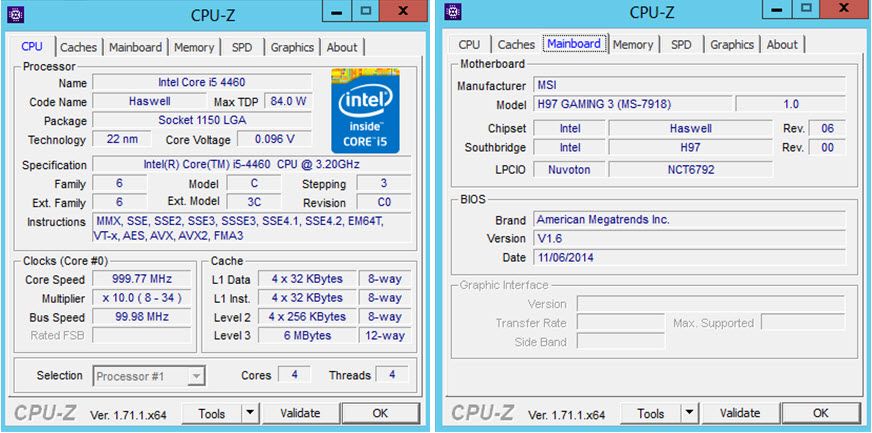

Sever Specifications

Figure 1-4

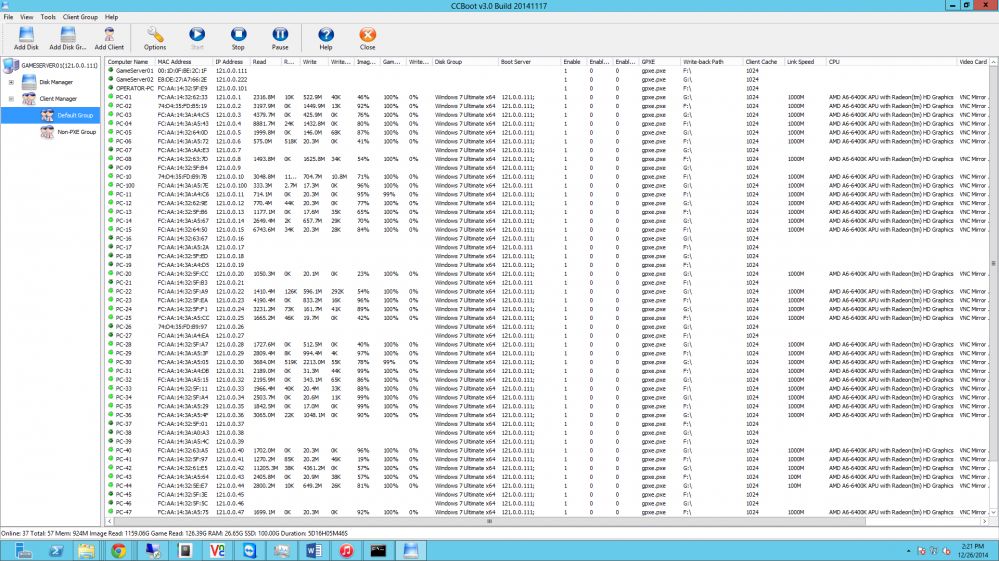

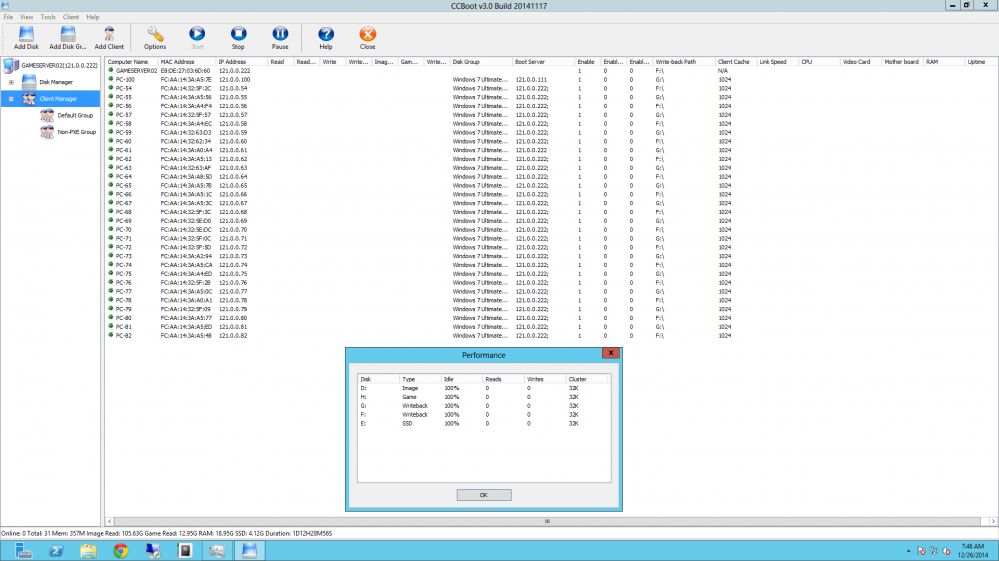

CCBoot Interface

Figure 1-5

CCBoot Client PCs

Figure 1-6


Figure 1-7

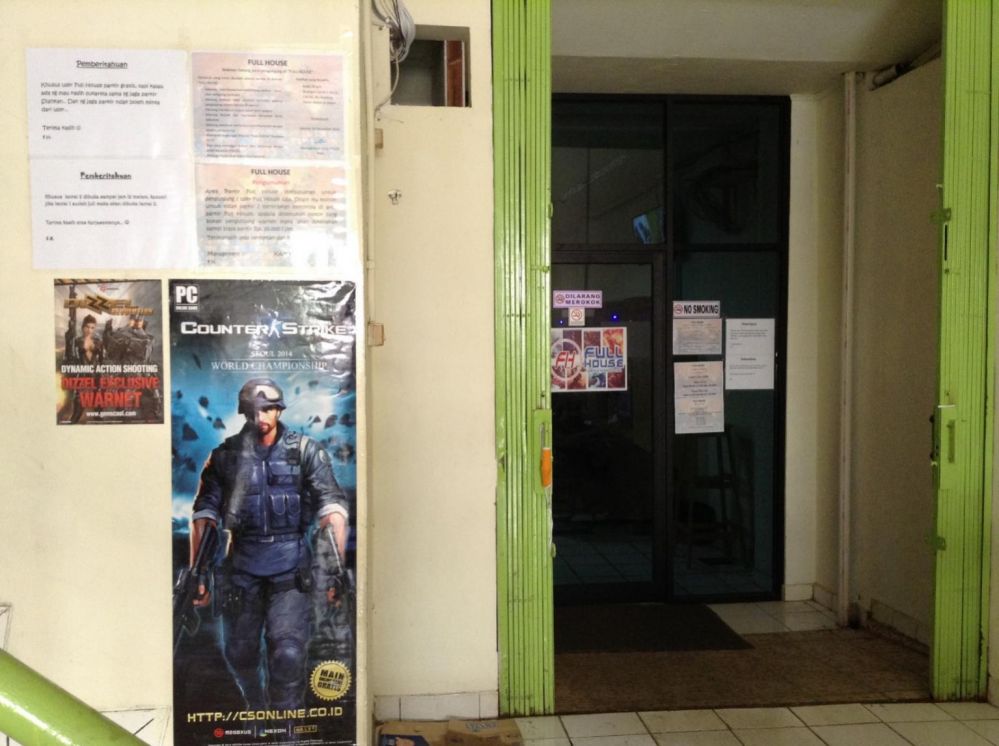

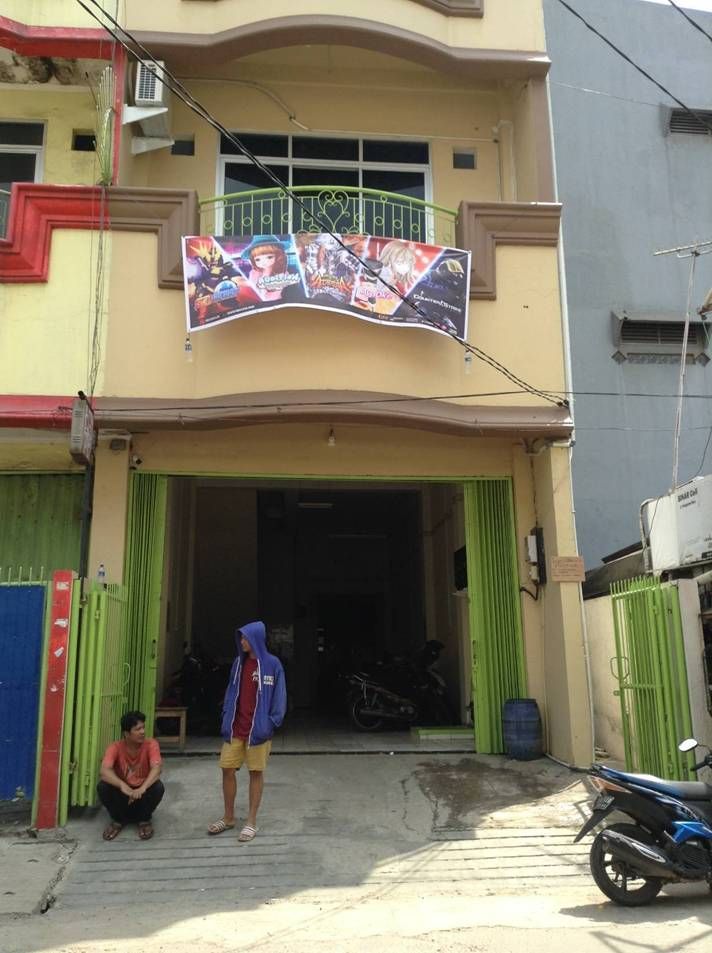

Fullhouse Entrance

Figure 1-8

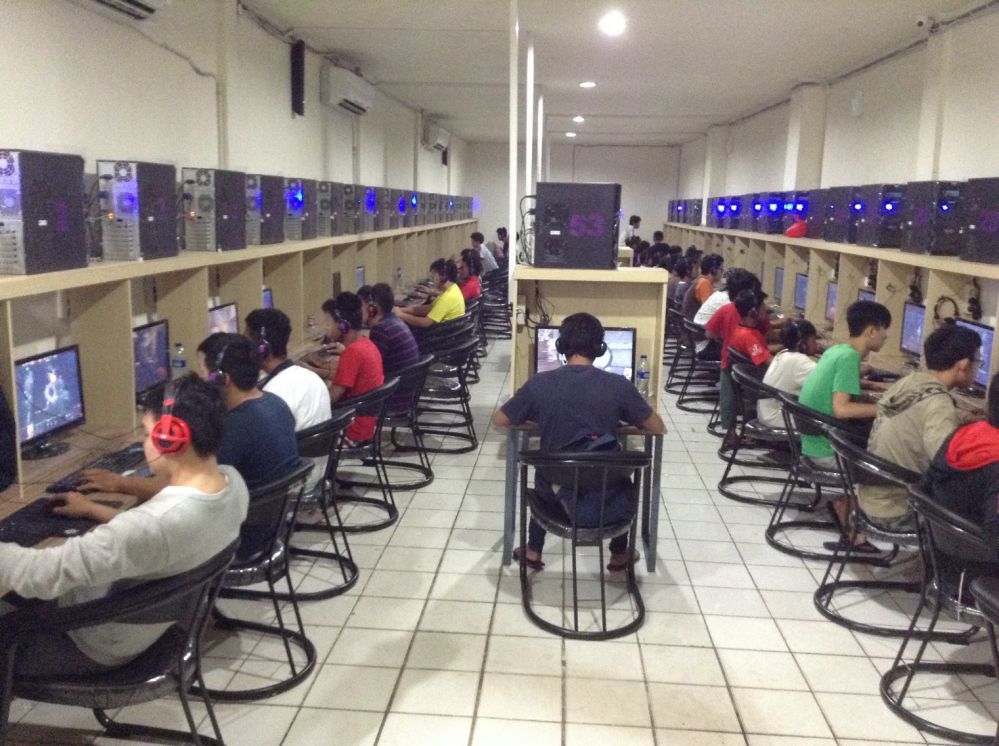

Fullhouse 1st Floor

Figure 1-9

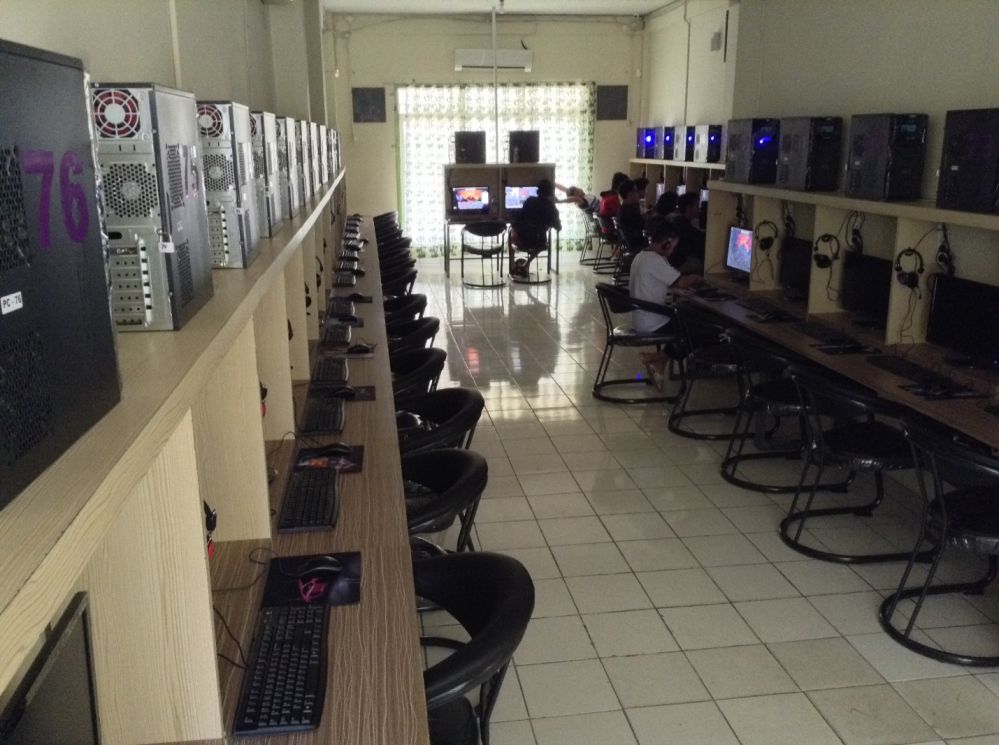

Fullhouse PCs

Figure 1-10

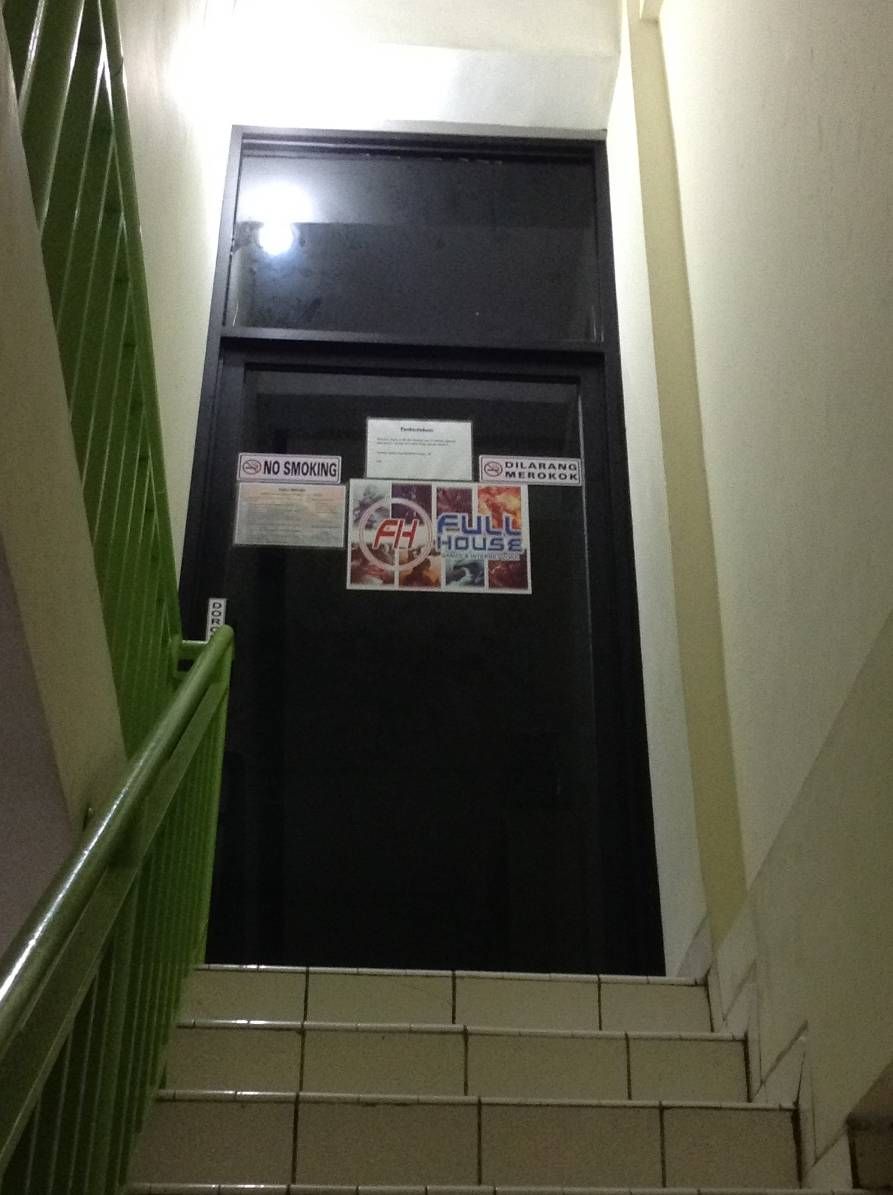

2nd Floor

Figure 1-11

Fullhouse 2nd Floor

Figure 1-12

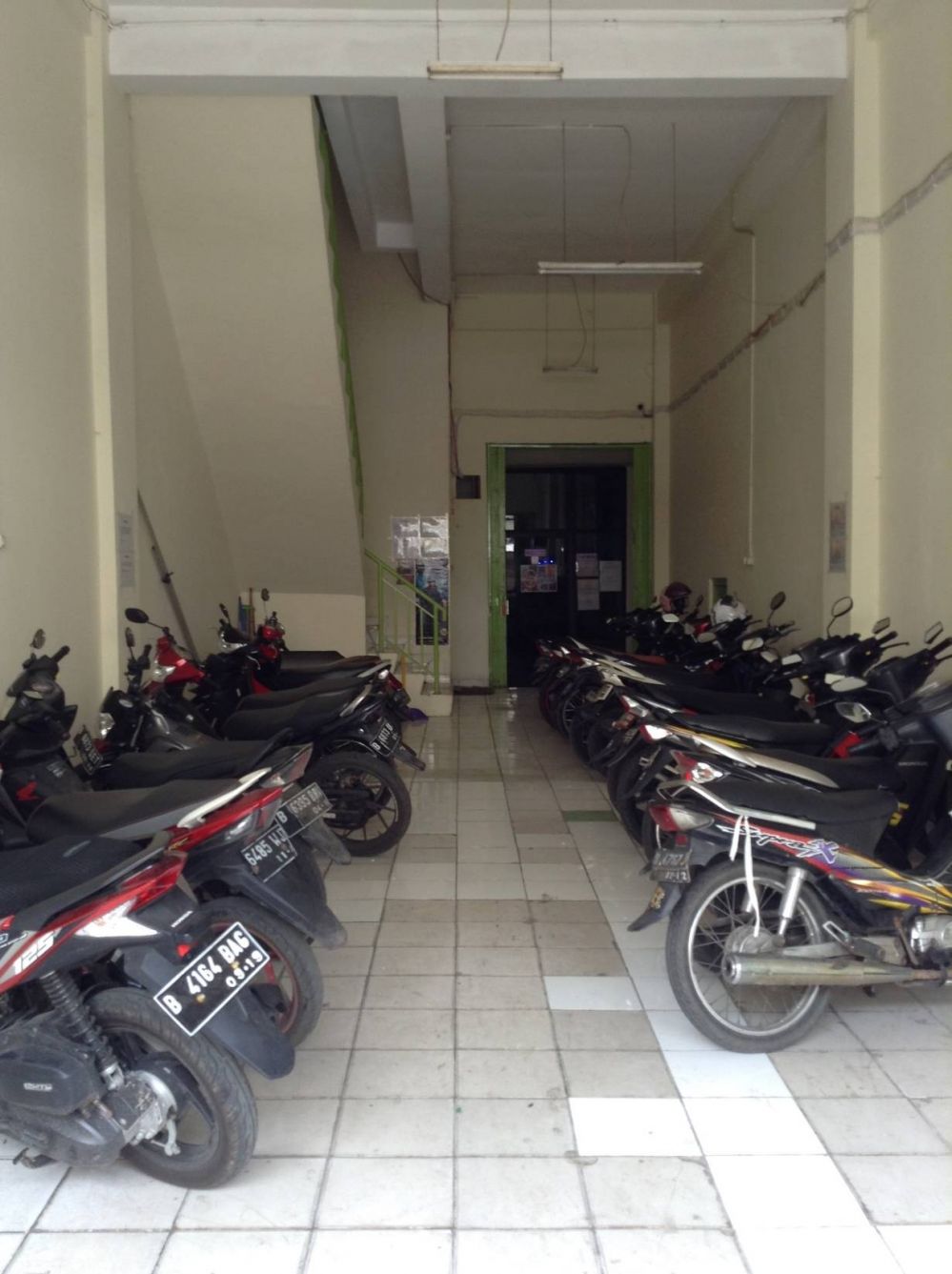

Parking Place

Figure 1-13
