Server requirements

Software requirements

CCBoot server can be run on any system above Windows 7.

1. We recommend installing Windows Server 2012.

2. The second choice is Windows Server 2016.

3. The third choice is Windows 10.

Note: Do not install antivirus on your server computer as it scans the system and creates high disk activity causing clients to lag and games start to load slowly.

Hardware requirements

Here is the recommended server hardware for diskless boot with CCBoot.

CPU:

Intel Quad Core Processor (i5 or higher)

Motherboard:

Server motherboard that supports 16GB or more RAM, 6 to 8 or more SATA Ports.

RAM:

No. Of Clients

Server RAM

10 - 30

16 GB

30 -70

32 GB

70 - 100

64+ GB

For 100+ client PCs, we recommend to use 2 or more Servers with load balance.

Image disk: the hard disk that stores the client OS boot data. We call it an "image".

Game disk: the hard disks that store the game data.

Writeback disk: the hard disks that store the client write data. In diskless booting, all data are read and written to/from the server. So, we need a writeback disk to save the client's write data. Other products are also named as "write cache".

SSD Disk: the disk that is used to cache game disk data. Caching game disk data in SSD Disk gives clients quicker access to game files as SSD is much faster than traditional HDD. In case if you use SSD disk for game disk the SSD cache disk is optional or just use NVMe disk as a cache to improve the SSD game disk.

Required Hard Disks:

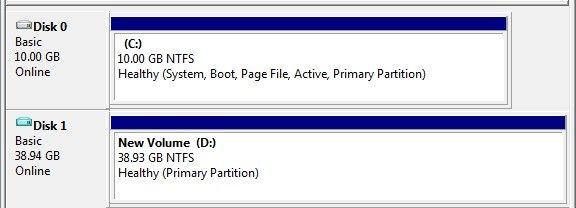

1) One SATA SSD is used for server OS (C:\) and CCBoot Server install (D:\).

2) One SSD for image disk - 256GB

3) SSD for game disk.

In case you want to use RAID 0 we recommend using Windows disk manager to setup RAID0 instead of hardware RAID in BIOS. We recommend setting SATA mode as AHCI in BIOS. Because AHCI is better for writeback disks' write performance. For more information, please refer to AHCI on wiki. In the BIOS, SATA mode can only be one of AHCI and RAID. If we set it as AHCI, the RAID function of the motherboard will be invalid. So we use Windows disk manager to setup RAID0. The performance is the same as hardware RAID0.

3) SSD for write-back disk (256+ GB)

Note: For 25 - 30 users, 1 writeback disk is enough, for 30+ users, use 2 writeback disks.

We do NOT recommend using RAID for write-back disks. If one disk is broken, we can use the other one. If you use RAID for writeback disk, then, one disk break then it will cause all clients stop working. On the other hand, CCBoot will auto balance the writeback disk when you have more than one disks. Using two disks the write performance is better than using RAID. Using SSD as writeback disk is better than hard disk as SSD has good IOPS.

Raid 0 from SSD for writeback does not improve performance because for random read/write IOPS will not increase, raid 0 on SSD increases only sequential read/write speed.

Note: Do not use cheap SSD for writeback and SSD disk as they are unreliable and may cause clients to hang when the SSD gets corrupt. Also, do not use SSD for a few roles because it will reduce the performance. Choose an SSD with high read/write speed. Faster SSD for writeback results in better performance for clients. We recommend using an SSD with IOPS for random read/write more than 90K (for example : Samsung EVO series).

Note: Format all hard disk with 32K allocation unit except windows partition/disk , as it provides you the best performance. - Do Not skip this

4) One SSD disk for SSD cache (256+ GB).

Network:

1 Gigabit Ethernet or 2 x 1 Gigabit Ethernet team network. We recommend Intel and Realtek 1 GbE Series.

For 10-15 PCs, use 1 GbE on server and  for 20-30 PCs, use  2 x 1 GbE  on server.

Use CAT 6 Cable for best performance, can use CAT 5e for smaller deployment of 10-20 PCs.

For network switch, please use 1 GbE unmanaged switch.

Important: Do not use PCI gigabit ethernet card on the server if you are planning to add NICs to give more bandwidth to client

If you want to add more NIC then find PCIe gigabit ethernet cards as they provide better bandwidth than PCI cards.

Sample 1:

Motherboard   : Asrock Z370 Extreme4

Processor       : Intel Core i7-8700

Memory          : 32 GB DDR4 RAM

Disks :

Server OS: 1 SSD 120-250 GB Samsung Evo 860

Image disk: 1 SSD 250 GB Samsung Evo 860

Writeback disk: 1 SSD 250 GB for each 25-30 client PCs Samsung Evo 860

Game disk: 1-4 SSD 500 GB - 2TB Samsung Evo 860

Casing            : Any Model (Full tower for much better ventilation)

Power Supply : Any Model/Brand of True rated 650 Watts

UPS                : Any Brand with type Online/double-conversion

Additional Network cards

If you want to use only 1 server for more than 100 PCs up to 200 PCs then refer to the following hardware requirements.

1. Server OS: 1 x 250 GB SSD

2. Image Disk: 1 x m.2 250GB or higher SSD

3. Writeback disk: 8 x 250 GB SSD

4. Game disk: 4 x 500GB in RAID 0

5. LAN: 2 x 10 gigabit network cards

6. RAM: 64-128 GB ram
