Backup Image

2016/07/06 01:08

Notice: This wiki is for the old version CCBoot. Please click HERE to access the new version wiki

As it often happen when we update the image something goes wrong and our image is broken.

If it was in superclient, we can just cancel the update. But what happens if main image gets corrupt.

Here, you will learn how to make backup of you image and keep it safe in case your primary image breaks. (Better sure than sorry)

Lets make backup of your image using restore function in the Disk Recovery dialog box..

As an example, we are making  backup of image "E:\Windows7.vhd" to another drive "Backup (G:)".

1) On the main interface of the CCBoot, click the "Client Manager", and then in the detailed pane on the right side, right-click the image, and click to select the "Disk Recovery" (Figure 1).

recovery option

Figure 1

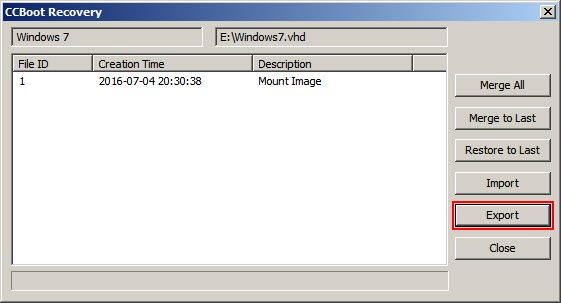

2) In the pop-up "CCBoot Recovery" dialogue box, you can see the directory of the images as well as any recovery points it has. Simply click "Export" button (Figure 2)

expore button

Figure 2

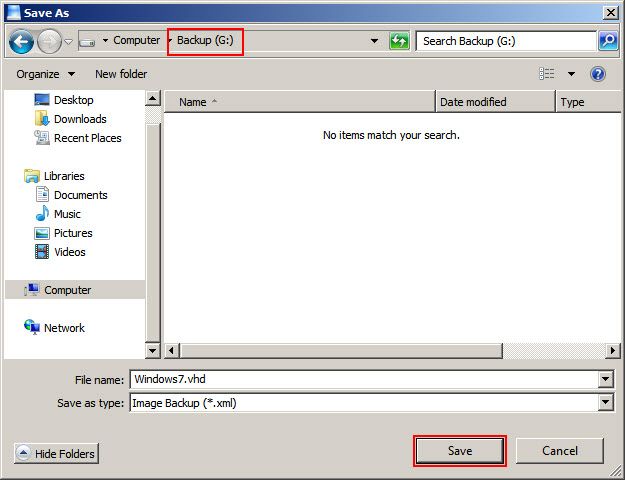

3) It will open “Save As” dialog box, browse to the location you want to export the image and click “Save” button (Figure 3).

Export Location

Figure 3

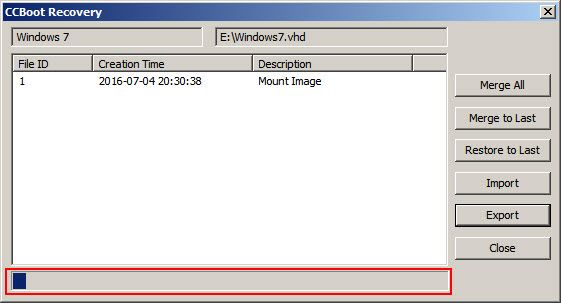

4) Now, the image export will start at the location of you choosing (Figure 4)

Note: The export function exports the main image as well along with the recovery points and creates a “.xml” file in the exported folder/disk.

Image Exporting

Figure 4

5) Once the export is complete a dialog box opens, simply click “OK” to close it.

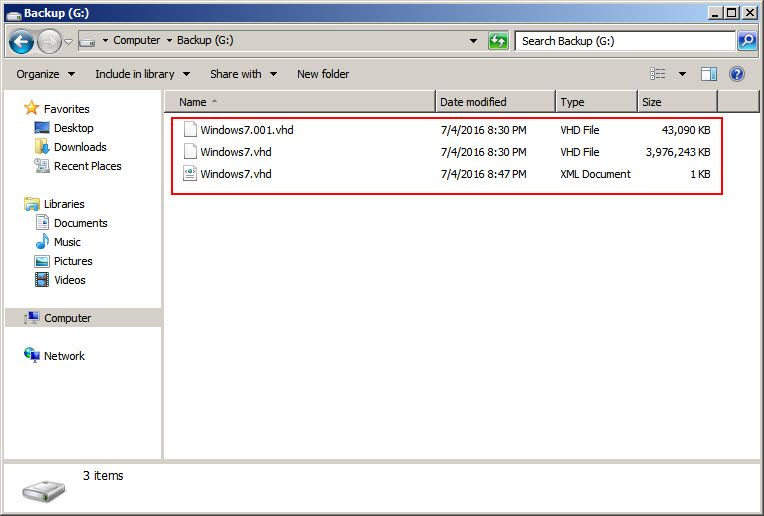

6) Now, go to the export folder/disk and make a copy of the files in it (Figure 5).

Exported Image

Figure 5

Note: As seen above, Windows7.vhd is the main image and the Windows7.001.vhd is recovery point and the Windows7.vhd.xml file has information regarding the recovery point.

Note: Do Not delete the Windows7.vhd.xml file as it is required import the image back to the CCBoot.


Note: If you dont have any recovery point for the image then simply, make a copy of your primary image (Eg. Windows7.vhd) to somewhere save.

You can use this image when you have issue with client booting. It is recommended to make backup of you booting image before you want to make major changes
