CCBoot read write performance

client, read, write, performance

Here are some of the benchmarks on which shows the read/write speed for CCBoot client disks.


OS: Windows Server 2016

CPU: Intel core i5 9500F up to 4.40 GHz
RAM: 32GB DDR4 3200MHz
Network: 10gb  NICS
Switch: TPLink TL-SG1024 V12 24 port switch

Disks: 1 x nvme 256GB for image disk, Sata SSD for game disk and writeback disks

Network settings:

ARP Offload - Disabled

Auto Disable Gigabit - Disabled

Energy Efficient Ethernet - Disabled

Flow Control - Disabled

Green Ethernet - Disabled

Interrupt Moderation - Disabled

IPv4 Checksum Offload - Disabled

Jumbo Frame - Disabled

Large Send Offload v2 (IPv4) - Disabled

Large Send Offload v2 (IPv6) - Disabled

NS Offload - Disabled

Priority & VLAN - Priority & VLAN Disabled

Receive Side Scaling - Disabled

Shutdown Wake-On-Lan - Enabled

Speed & Duplex - Auto

TCP Checksum Offload (IPv4) - Disabled

TCP Checksum Offload (IPv6) - Disabled

UDP Checksum Offload (IPv4) - Disabled

UDP Checksum Offload (IPv6) - Disabled

Wake on Magic Packet - Enabled

Wake on pattern match - Enabled

WOL & Shutdown Link Speed - 10 Mbps First

Client NIC speed: 1 Gbps

Client Cache: Disabled

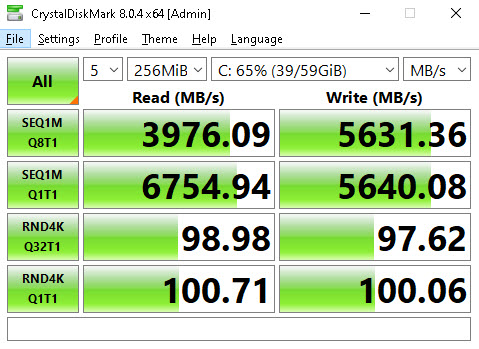

Figure 1

Client Cache: 2048 MB

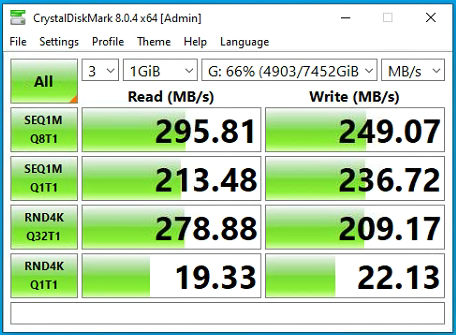

Figure 2

Client NIc: Realtek

Speed: 2.5Gbps

Cache: Disabled

Local Writeback: disabled

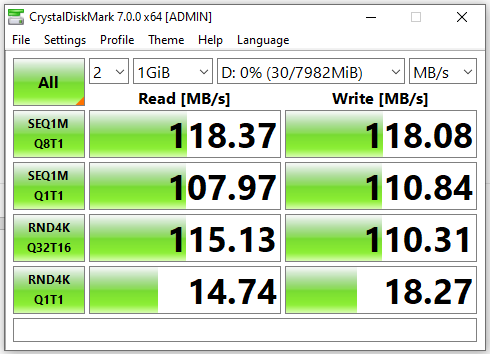

Figure 3
