Client Cache

2018/07/04 15:05

Notice: This wiki is for the old version CCBoot. Please click HERE to access the new version wiki

Why enable client cache ?

Client cache is simply RAM cache for client PC which used client's RAM to cache read/write data. When the client cache gets full, it will be flushed to the server as writeback data to the writeback disk.
This way, client cache provides better performance for the diskless client and also reduce the load on server writeback disk.


Step to enable client cache:

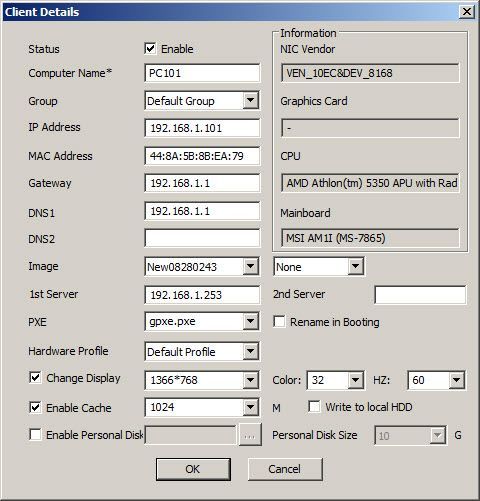

1) On CCBoot server, select the client PC, right click and choose "Edit Client" to open the window as below (Figure 1‑1).


Figure 1‑1

2) Tick the checkbox at the front of "Enable Cache". You can either select using the drop down menu or enter value manually. Please refer to the following table.

Client Physical RAM

Client Cache

1 GB

256 MB

2 GB

384 MB

4 GB

512 MB

8 GB

1024 MB

16 GB

2048 MB

Note: In new version of CCBoot, you can set Client local cache to auto, this will automatically set the local cache based on the amount of RAM available. This also give you a slight boost in boot speed as well as client performance.

Note: If you have more than 16GB RAM in client then you can set 2048 MB or set it to auto. Any lower, do not use auto in Client Cache.

3) If you tick the "Write to local HDD" the the client will not use the RAM for cache but will use the local hard disk for writeback.

Note: You need to have a local harddisk already formatted. If not local writeback will not work.

4) Click "OK" to save the settings.


Notes:

Sometimes, the client cache will cause blue screen when boot Windows. To fix this you can:

a) Reduce the size of client cache size, if it is still failed, try method b.

b) Reinstall CCBoot Client with selected "Start Cache After Login Window".

c) Disable the client cache.

d) Update CCBoot client to same version as CCBoot server.

Advanced Client Cache

If the client OS is 32bit, then the unmanaged RAM can be used as client write cache. For details, please refer to "Unmanaged RAM as Client Write Cache".

Note: if you are using third party DHCP like pfsense then please follow the wiki to setup pfsense properly or the client cache will not function as desired.
