Turkey Internet Cafe (Bursa II) CCBoot Case

Thanks for Selçuk DERE provides these pictures about his successful deploy of CCBoot in his Internet Cafe.


Company name: ÜÇGEN NET

Phone: 0 507 582 66 11

E-mail: dereselcuk@gmail.com

Address: Küçük Balıklı Mh. Kadifeli Cd. No:17/A Osmangazi Bursa , Turkey

Website: www.ucgenoyunarsivi.com


Cafe Name: ÜÇGEN NET

Deployed PCs: 37 PCs

Cafe Owner: Selçuk DERE

Coupon Code: dereselcuk

Video about deploying CCBoot: http://youtu.be/RBtyWh9U


Server Specifications:

Intel I3-3220 3,30 Ghz

Asrock Z77 Pro-3

4 x 4Gb 1600 Mhz Corsair DDR3 Ram

2 x 3 Tb Western Digital Sata 3 Hdd Raid 0

120 Gb Corsair SSD Sata3 Harddrive

2 x 60 Gb Corsair SSD Sata3 Harddrive

Digitus 1Gbps Pci-x NIC

Client PCs' Boot Time is 43 Seconds for Windows 7 x64


Client Specifications

Intel I3-3220 3,30 Ghz

Asrock Z77 Pro-3

4Gb Hi-Level DDR3 Ram

No HDD


Special Using:

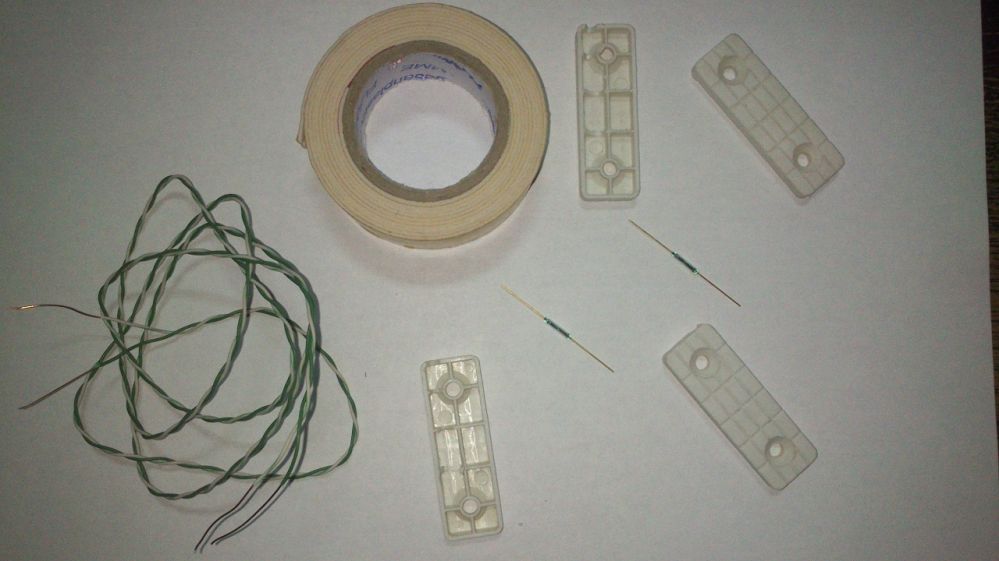

Client PCs have no power button, using a magnetic switch attached to the keyboard drawer. When the user pulls the drawer, the computer turns on.

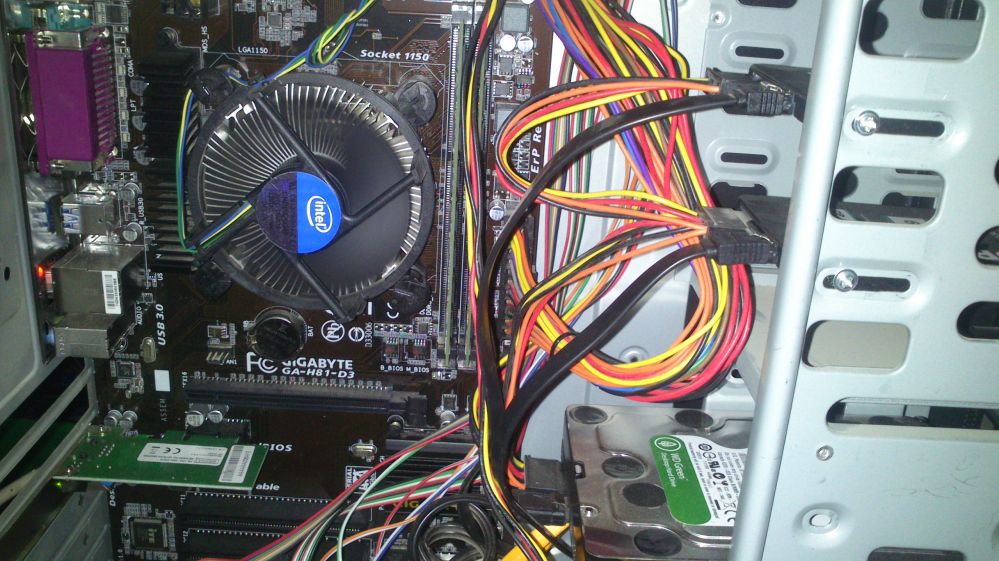

Server Hardware

Figure 1-1

Disk Partitions

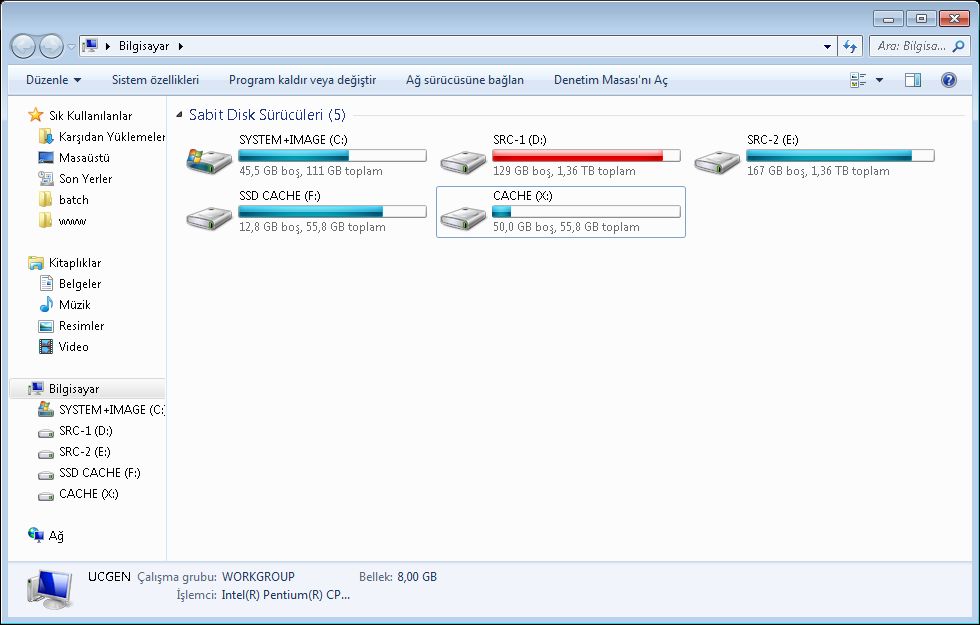

Figure 1-2

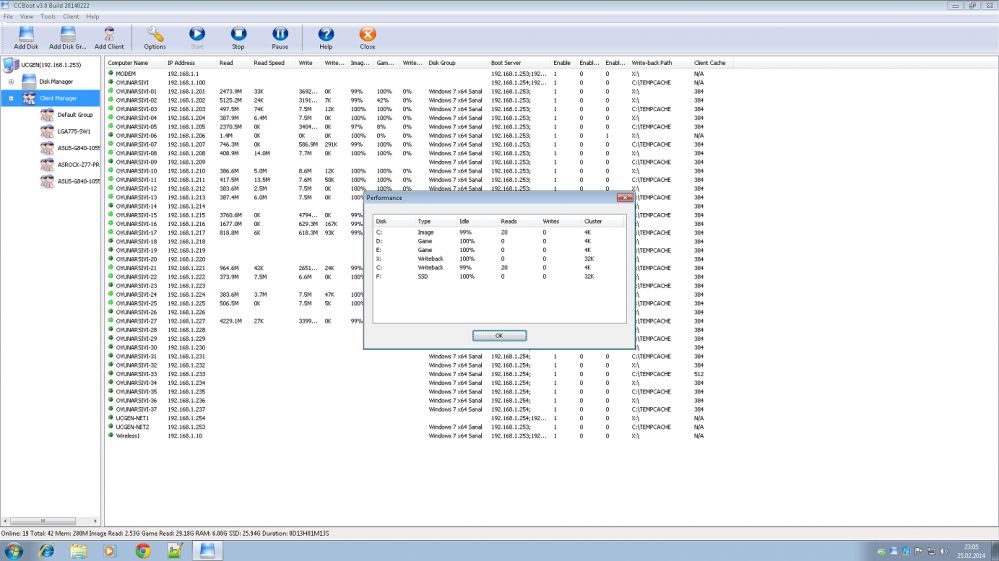

CCBoot Main Interface

Figure 1-3

Client PC

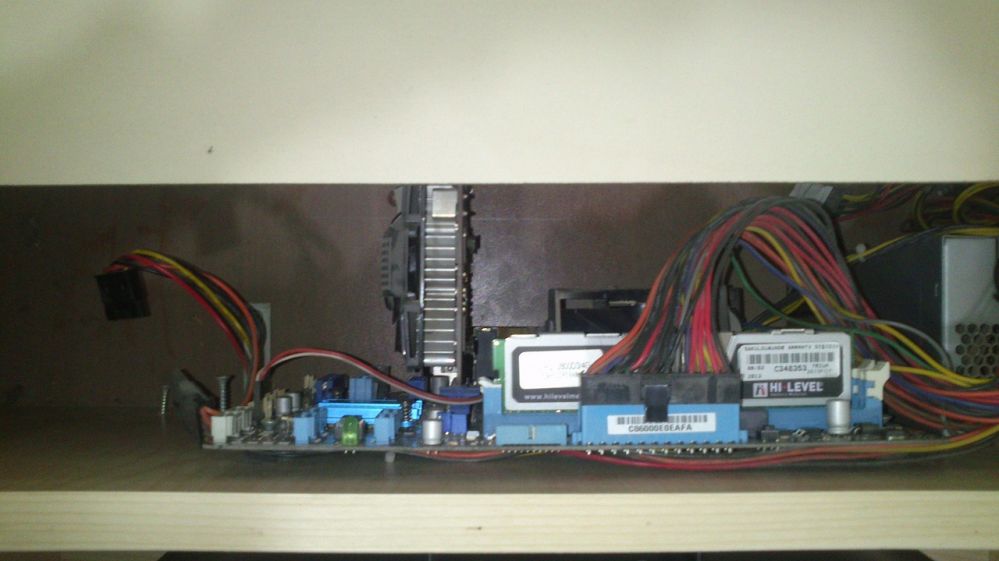

Figure 1-4

Bursa Case

Figure 1-5

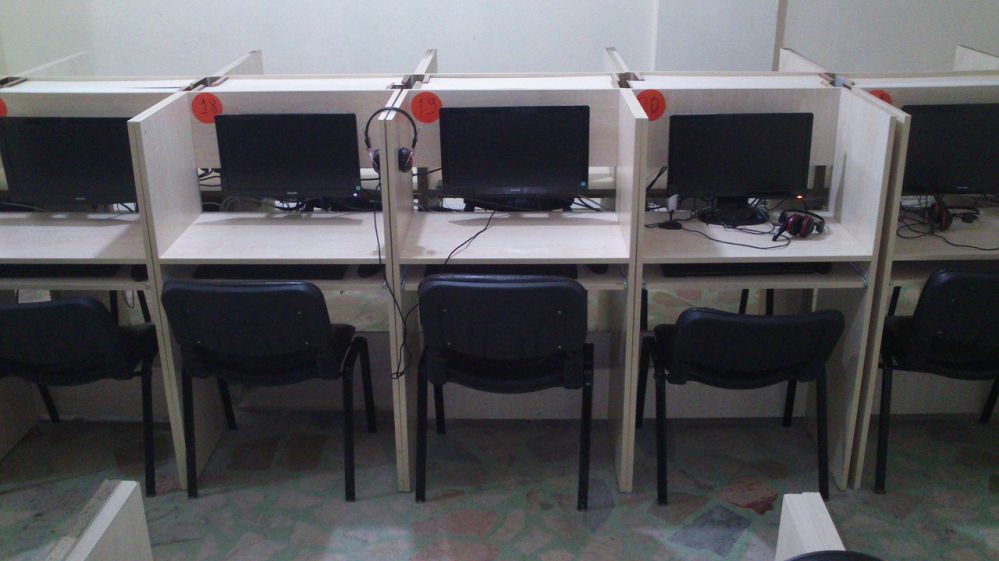

Client PCs

Figure 1-6

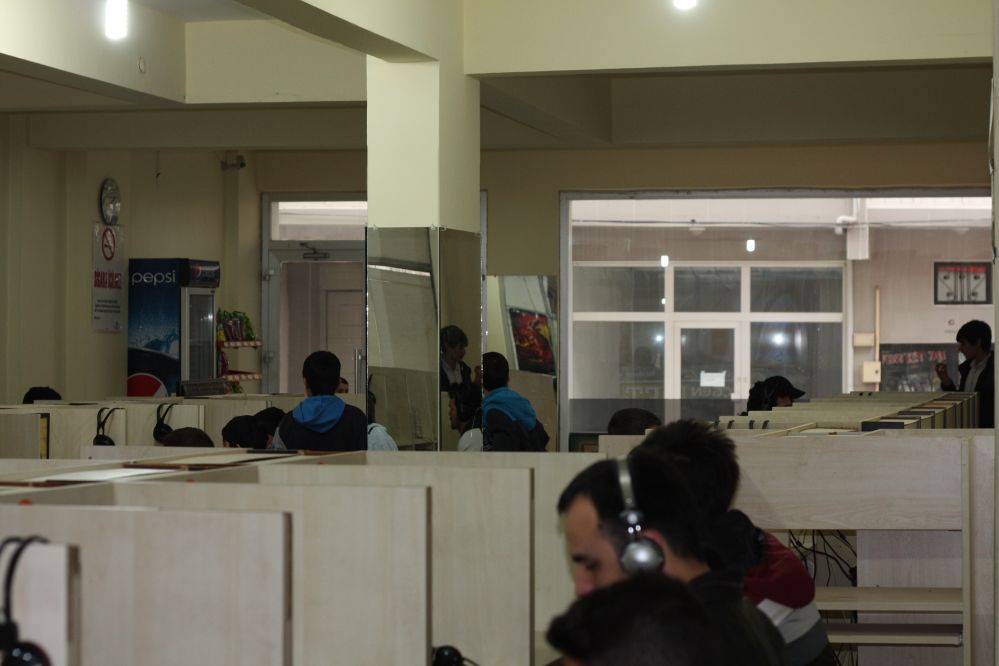

Cafe

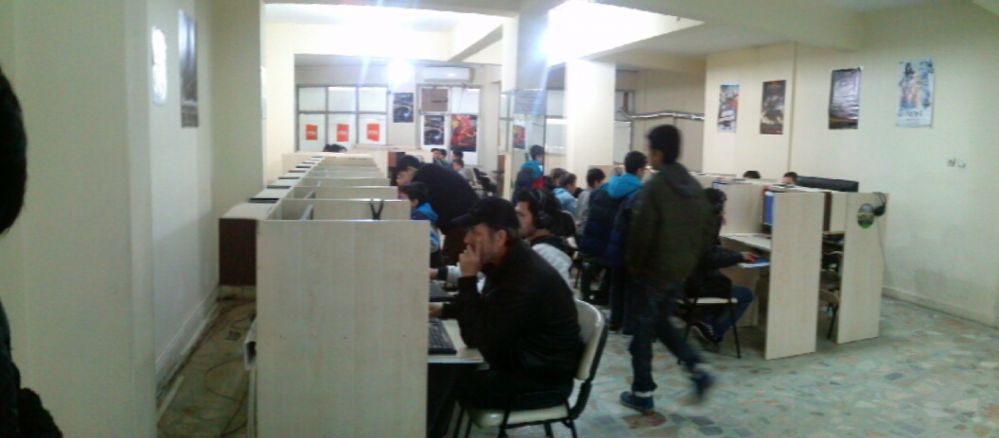

Figure 1-7

Cafe

Figure 1-8

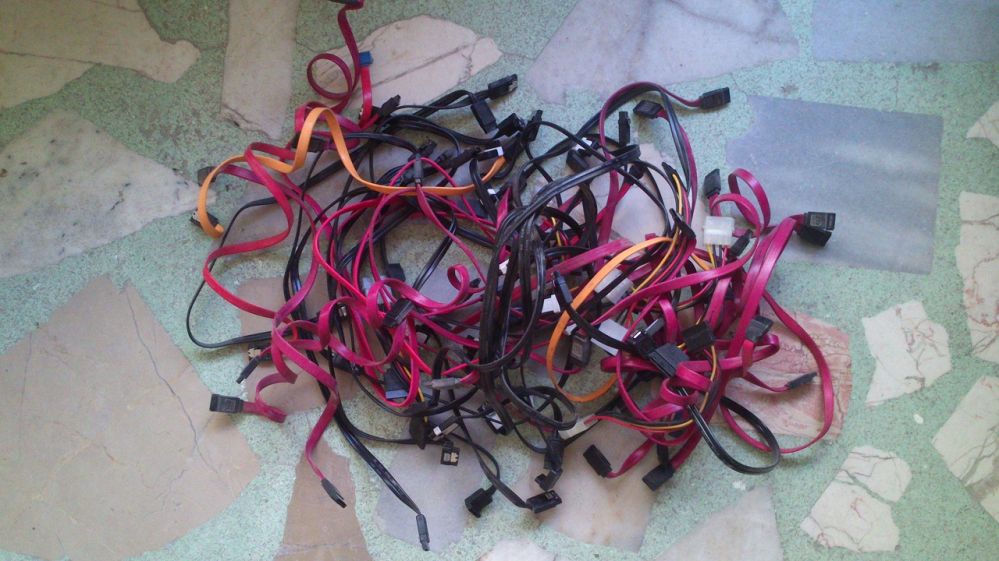

Useless Cables

Figure 1-9

Hard Disks

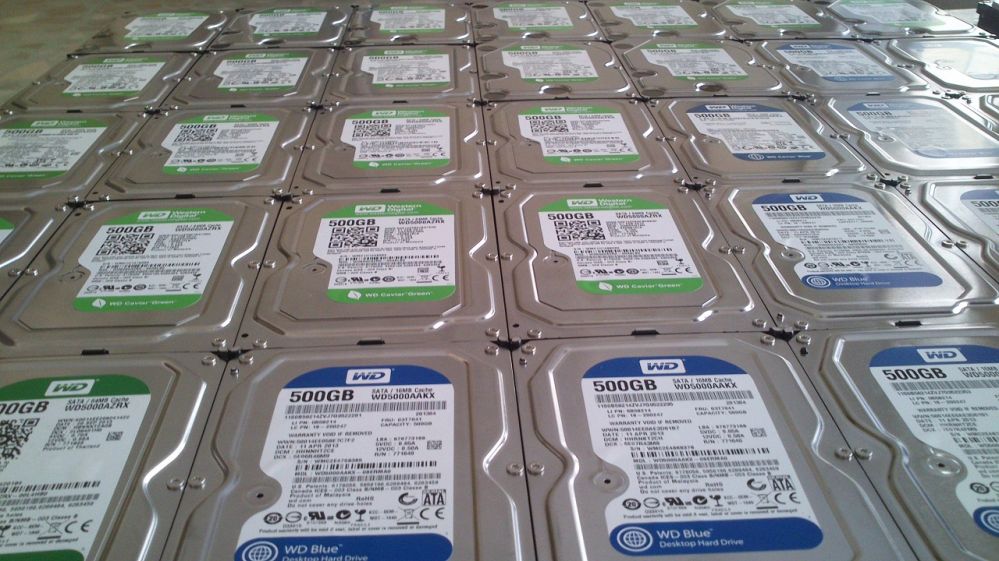

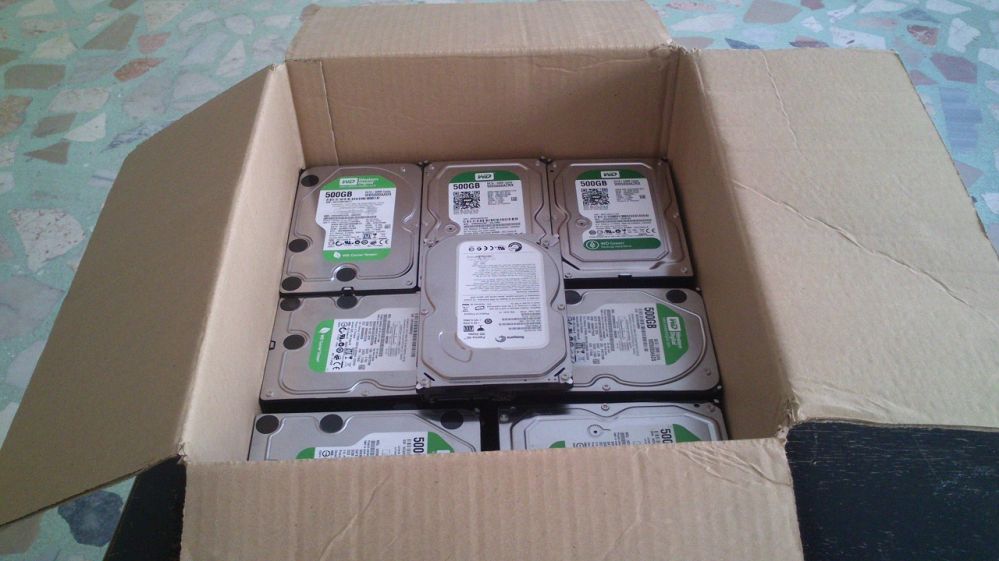

Figure 1-10

Hard Disks Package

Figure 1-11

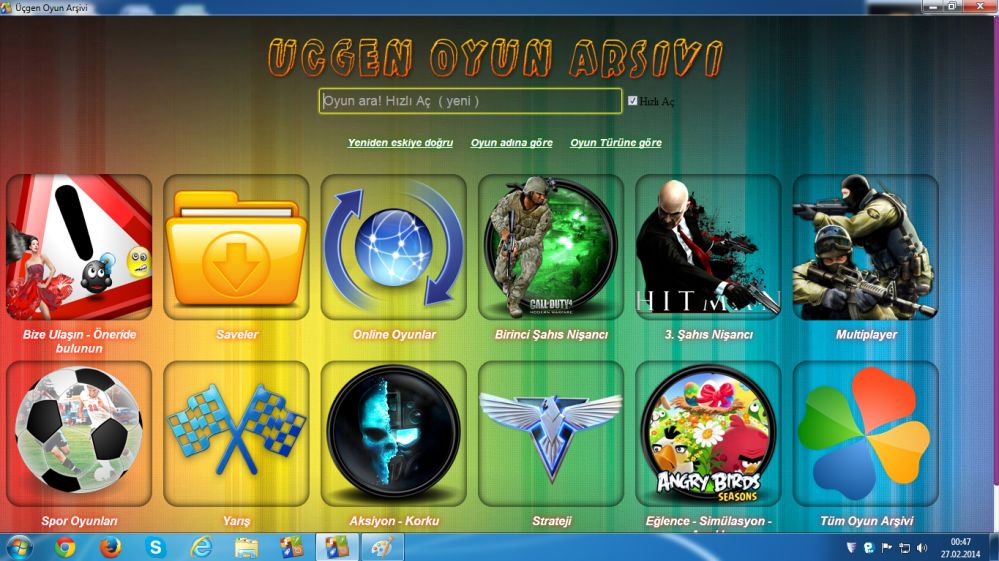

Games

Figure 1-12

ÜÇGEN NET Cafe

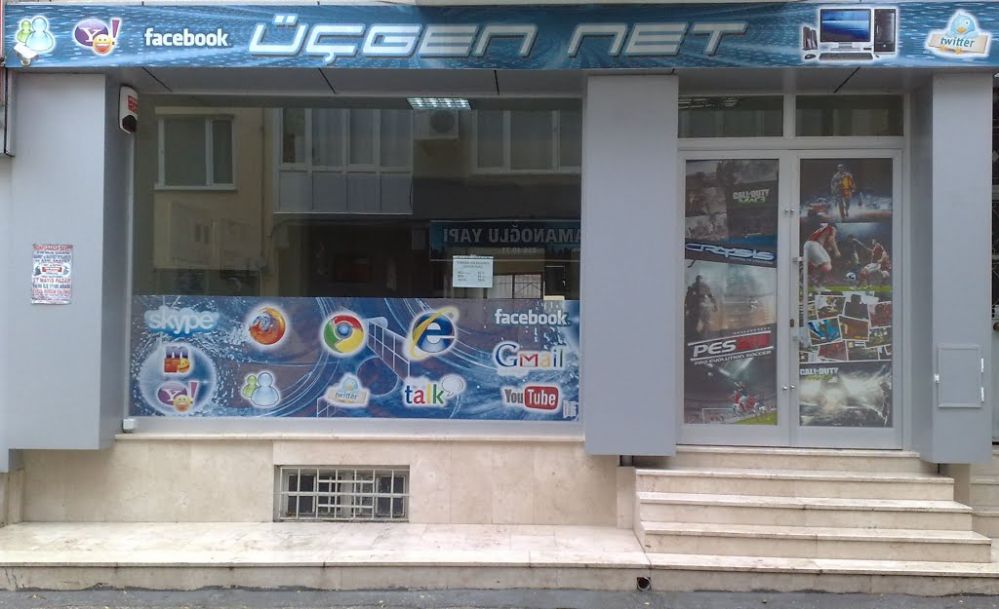

Figure 1-13

Server Specs

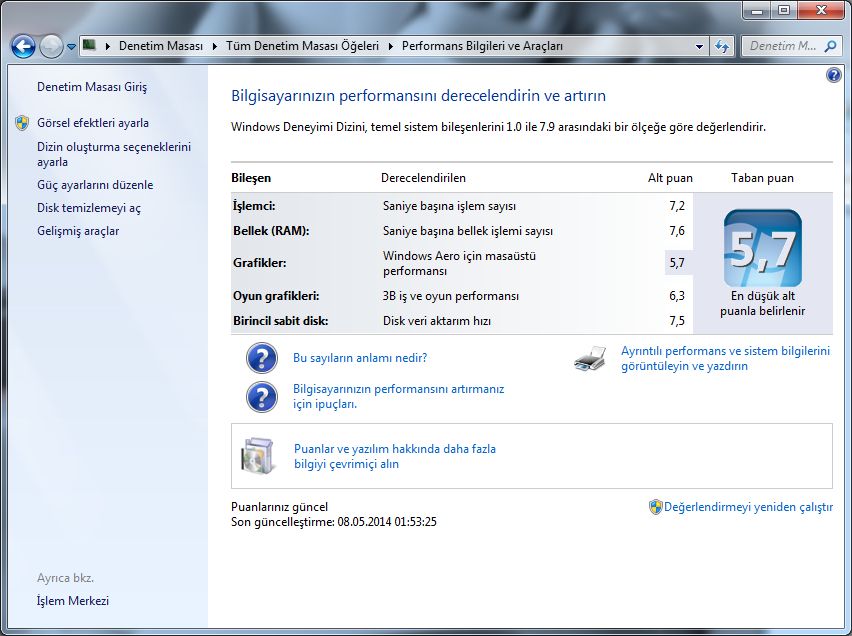

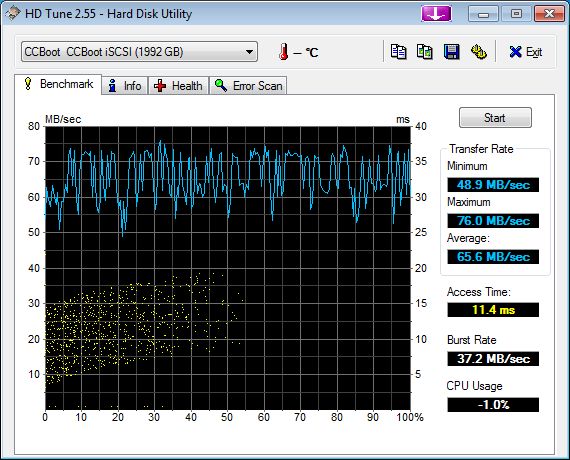

Figure 1-14

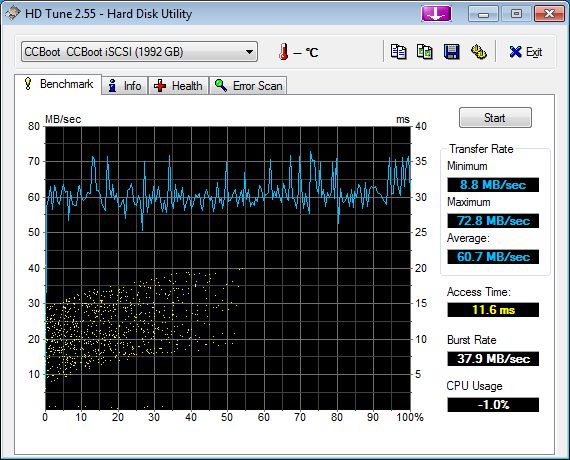

Game Disk 1 Raid0 ISCSI

Figure 1-15

Game Disk 2 Raid0 ISCSI

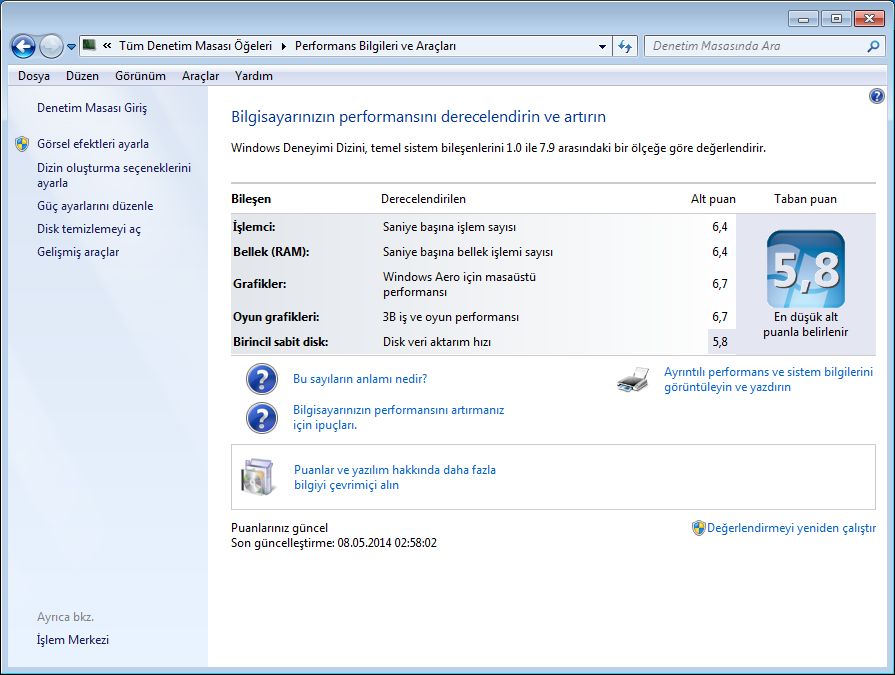

Figure 1-16

Client Specs

Figure 1-17

Format Game Disk

Figure 1-18

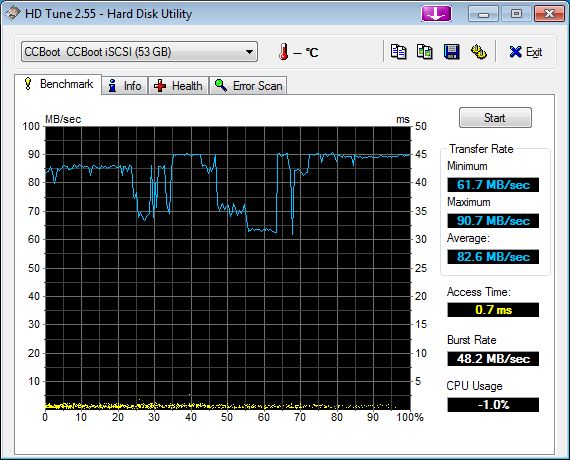

Win7 64 ISCSI

Figure 1-19

TO GAME DISK

Figure 1-20
