Manage hardware profiles in CCBoot

2019/04/13 02:23

From CCBoot Build 0319 we have a feature to manage hardware profiles.

Follow the steps below for managing hardware profiles in CCBoot,

1. Open CCBoot server, select image tab and right click on image from image list and click on "Mount Image (HW)" (Figure 1).

mount-image-hw

Figure 1

2. Click on "Yes" to continue mount image (Figure 2).

confirm-mount

Figure 2

3. Once the mount is successful, click on "OK" button to complete mount (Figure 3).

success-mount

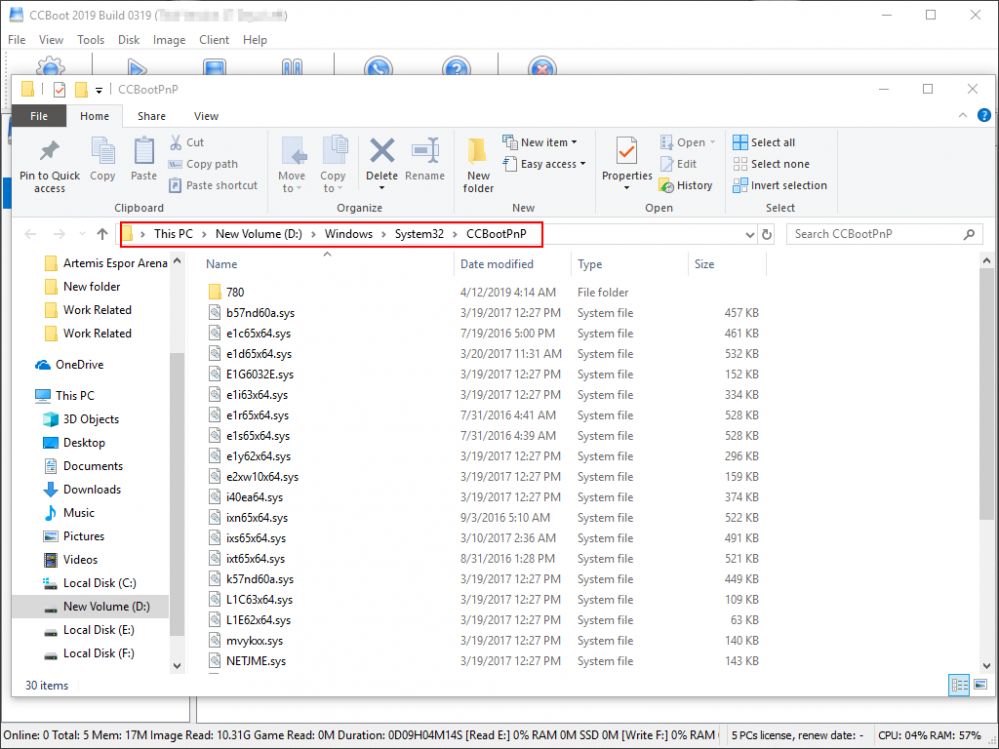

5. Once the "Ok" button is clicked, the image mounted changes to green (Figure 4) and the hardware profile folder will automatically open where you can manage(edit, delete) hardware profiles (Figure 5).

shows-image-green

Figure 4

manage-hw-folder

Figure 5

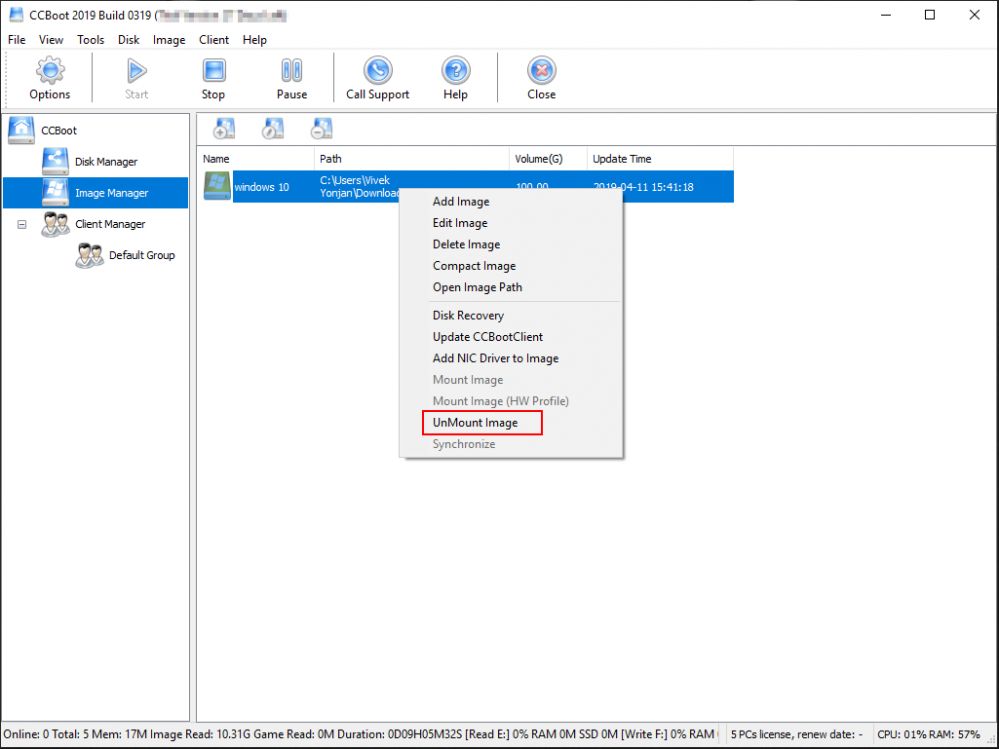

6. After you complete managing your hardware profiles then unmount your image by right click on image and click on "UnMount Image" (Figure 6).

unmout-image-01

Figure 6

7. Click on "Yes" to continue unmount (Figure 7).

confirm-unmount

Figure 7

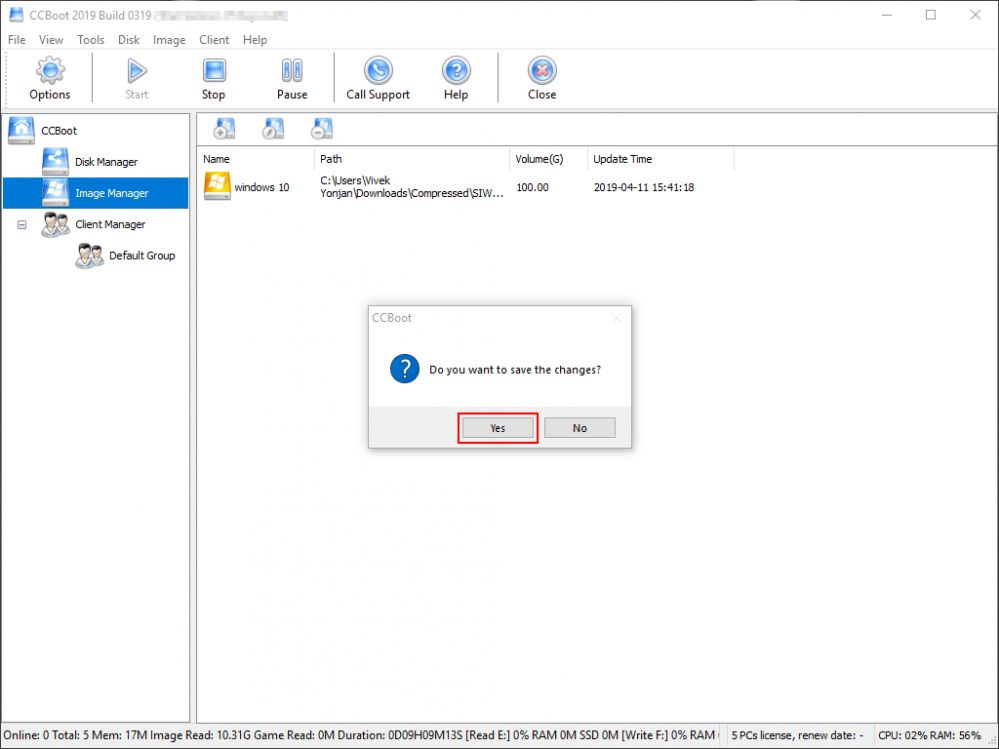

8. Again click on "Yes" for save changes (Figure 8).

save-changes

Figure 8

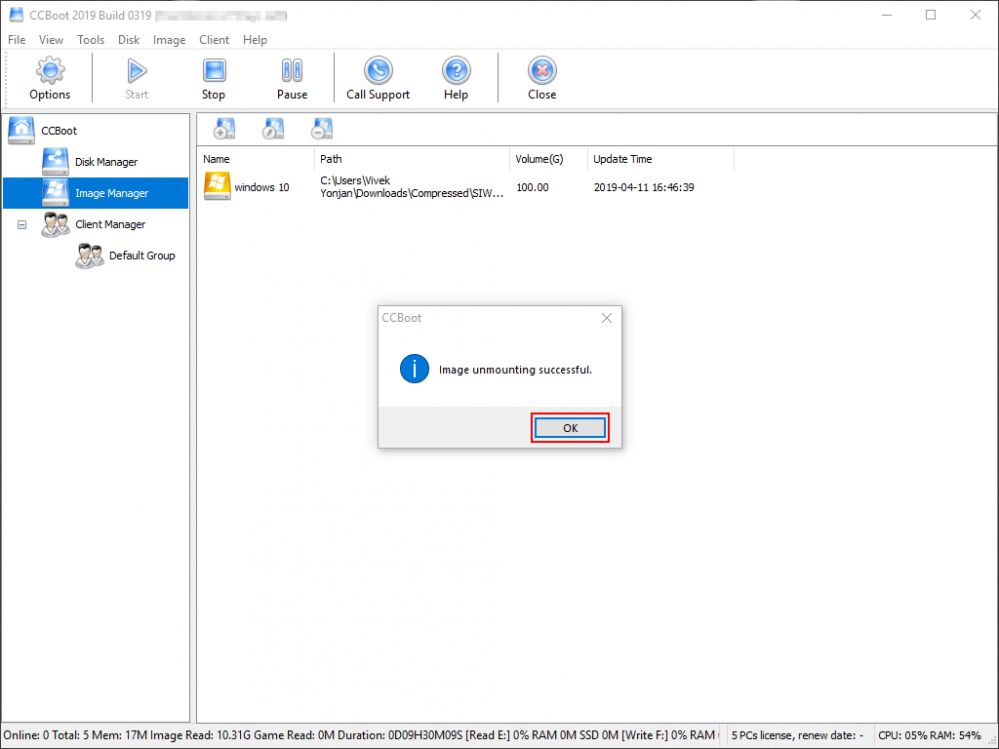

9. Finally click on "Ok" to complete unmount (Figure 9).

complete-umnount

Figure  9

The color of image will change to normal and In this way you can manage hardware profiles of a image.
