Add Disk

2016/05/09 12:25

CCBoot can share its own physical disks, volume disks, CDROM, VMDK files, VHD files, ISO files and etc.to the diskless clients. At the clients, they are all shown as a virtual hard disk. And the system and applications will recognize it as real hard disk.

Click the "Add Disk" button on the toolbar to open the "CCBoot Disk Properties" window as Figure 1‑1.

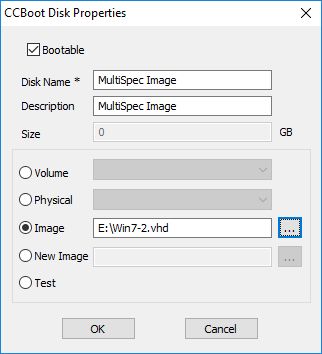

Figure 1‑1

1.     Input the "Disk Name" and "Description".

2.     If you want to add a boot image, you should check the "Bootable" check box.

3.     CCBoot supports multiple types of the virtual disk source, such as VHD, VMDK, ISO, CDROM, physical disk, volume disk and etc.

4.     You can choose one type disk source. For example, you can choose volume, physical disk as game disk. And you can also select image file as the boot image of the client.

5.     If you want to create a blank image, you can select the "New Image" radio button, and input the image size in "Size" edit box.

6.     Click the "OK" button to save.

Why you get message "The disk path exists"?

This is because you have added the same disk path before. So you need to remove it from the disk manager firstly. You can click "Disk Manger" node in the tree, and search the disk path in the disk list. Right click the disk in the list, and select "Delete Disk".
