Imagine managing an expanding IT environment with hundreds of bare-metal machines that require immediate operating system installations. Manually walking from desk to desk or rack to rack with a bootable USB drive is not just inefficient; it is a massive drain on IT resources. This is exactly where a properly configured PXE boot server proves invaluable.

For modern system administrators, network booting is a foundational skill. By allowing devices to boot directly from a central server rather than a local hard drive, you can provision systems, run hardware diagnostics, and manage entire fleets of computers seamlessly.

In this comprehensive guide, we will explore the intricacies of network booting, from the core mechanics of the PXE protocol to advanced deployments and troubleshooting techniques.

What is a PXE Boot Server?

PXE (pronounced "pixie") stands for Preboot Execution Environment. A PXE boot server is a system configured to serve operating system installation files, live environments, or diagnostic tools to client machines over a Local Area Network (LAN).

If you are new to this concept and wondering what is a network interface card boot, it simply refers to a computer's ability to initialize its boot sequence using its Network Interface Card (NIC) instead of a local storage device like a hard drive, SSD, or USB flash drive. When a machine is configured to boot from network, the NIC reaches out to the network to find the necessary files to start the machine.

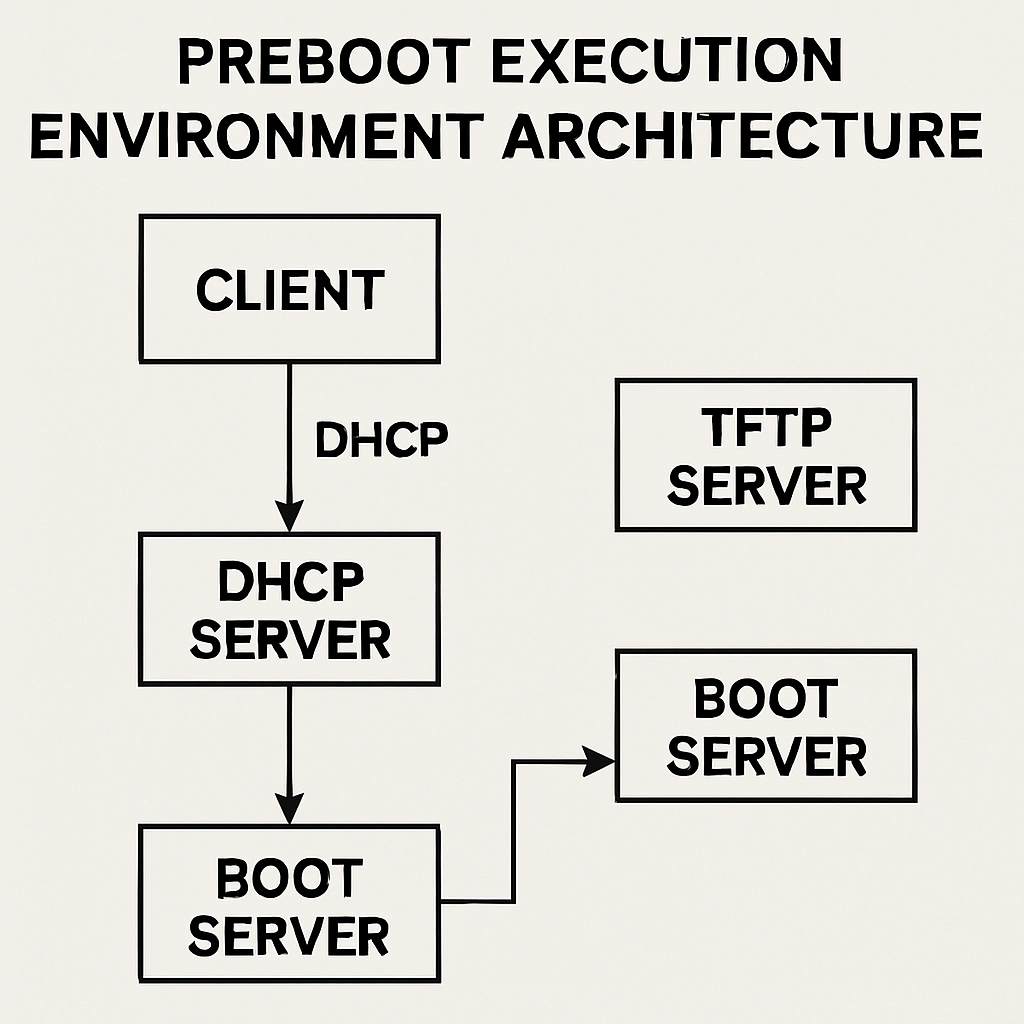

diagram showing the preboot execution environment architecture

The Mechanics: How Does PXE Protocol Work?

To fully grasp the preboot execution environment architecture, it helps to look at the process step-by-step. So, exactly how does PXE protocol work? It relies on a combination of standard network protocols, primarily DHCP (Dynamic Host Configuration Protocol) and TFTP (Trivial File Transfer Protocol).

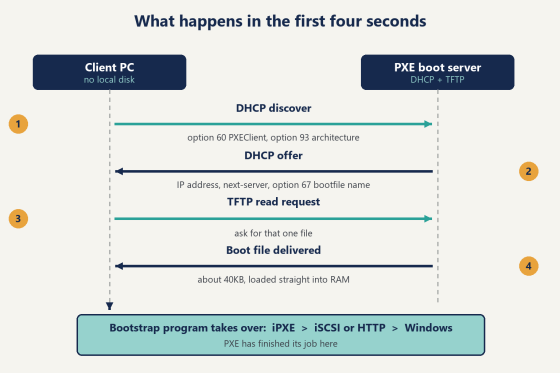

Here is what happens when you power on a PXE-enabled machine:

  • The DHCP Request: The client machine broadcasts a DHCP discover packet over the network, requesting an IP address. It also includes a specific flag indicating that it is PXE-capable.
  • The DHCP Offer: The DHCP server responds with an IP address, a subnet mask, and a gateway. Crucially, it also provides the IP address of the PXE server (often called the "Next Server") and the name of the boot file it needs to download.
  • The TFTP Download: The client contacts the PXE server using TFTP to request the specified boot file.
  • Network Bootstrap Program Execution: Once the small boot file is downloaded, it is loaded into the client’s RAM. The network bootstrap program execution (NBP) begins, taking over the boot sequence. This program usually presents a boot menu or automatically proceeds to download the full operating system image.

Key Benefits of Implementing a PXE Boot Server

Investing the time to set up network booting yields incredible dividends for IT operations.

  • Automated Operating System Deployment: PXE allows you to install OS images onto dozens of machines simultaneously with zero human intervention. This is essential for zero-touch provisioning.
  • Mass Deployment of Server Images: Data centers rely on PXE for the mass deployment of server images. When a new rack of servers is powered on, they can automatically pull their designated OS and configurations from the network.
  • Centralized Management and Updates: Boot images are stored in a single location. If you need to update a diagnostic tool or an OS installation image, you only have to update it on the server.

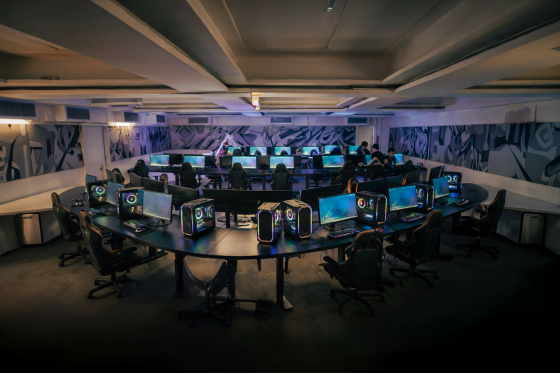

  • Enabling Diskless Workstations: PXE is the foundation for setting up thin clients. By following a standard diskless workstation setup guide, you can configure machines to boot entirely from the network, mounting their file systems via NFS or iSCSI, completely eliminating the need for local hard drives.

If your goal is specifically a diskless Windows environment (common in classrooms, training rooms, and Internet cafés), you may also see solutions that pair PXE boot with centralized storage/streaming. For example, CCBoot is a dedicated product in this space that’s often used to help clients boot from the network and run without local disks.

a data center rack highlighting the mass deployment of server images

Setting Up Your Environment: Core Components

To build a functional PXE boot server, you need to properly configure two primary services: the DHCP server and the TFTP server.

Configuring DHCP for Network Boot

Properly configuring DHCP for network boot is often the most critical step. If the client doesn't know where to look, the process fails immediately. In most DHCP servers (like Windows Server DHCP, isc-dhcp-server, or dnsmasq on Linux), you need to configure specific DHCP options:

  • Option 66 (Boot Server Host Name / Next-Server): This points the client to the IP address of your TFTP/PXE server.
  • Option 67 (Bootfile Name): This tells the client exactly which file to ask for (e.g., pxelinux.0 for BIOS or ipxe.efi for UEFI).

Pro Tip: If you don't have administrative access to your primary network DHCP server, you can use "DHCP Proxy" mode. A proxy DHCP server listens for PXE requests and responds only with the boot server details, leaving IP address assignment to your main router.

TFTP Server Configuration for Imaging

While TFTP is an older, slower protocol, it is universally supported by network cards. Your TFTP server configuration for imaging should be kept as streamlined as possible. Because TFTP lacks advanced windowing and packet routing capabilities, transferring massive files can be incredibly slow.

Modern deployments use TFTP only to deliver the initial small bootstrap program (like iPXE). Once that small program is running, it hands off the heavy lifting of downloading the multi-gigabyte OS image to faster protocols like HTTP, FTP, or NFS.

Modern Considerations: BIOS, UEFI, and Beyond

The landscape of network booting has evolved significantly over the last decade. Understanding these modern shifts is vital for a successful deployment.

UEFI vs BIOS Network Boot

For years, legacy BIOS was the standard, typically relying on the pxelinux.0 boot file. Today, almost all modern hardware uses UEFI (Unified Extensible Firmware Interface).

The primary difference in UEFI vs BIOS network boot lies in the architecture and the bootloader file required. A BIOS machine cannot execute a UEFI bootloader, and vice versa.

  • BIOS environments typically request a 16-bit or 32-bit executable.
  • UEFI environments require a .efi executable (such as bootx64.efi).

Modern DHCP servers are configured to detect the architecture of the requesting client (using DHCP Option 93) and dynamically hand out the correct bootfile.

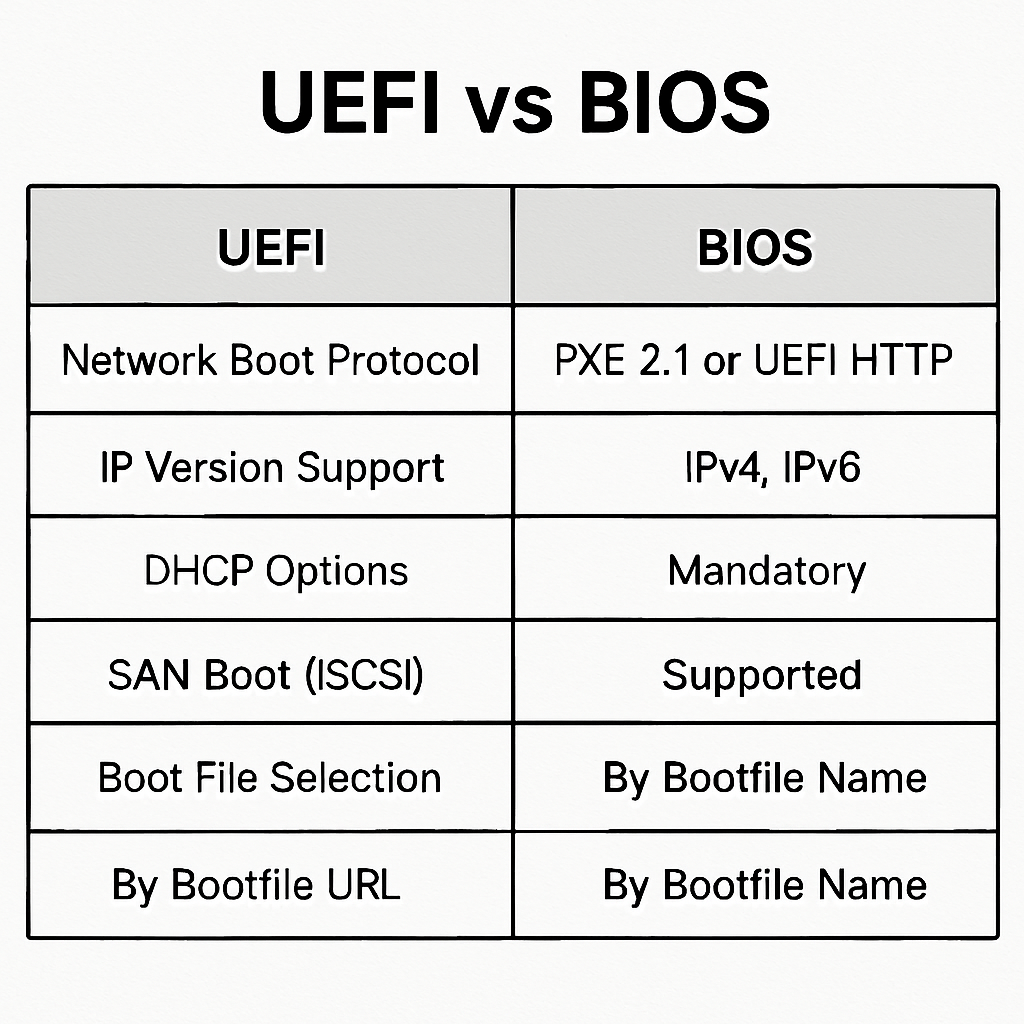

side by side comparison table of UEFI vs BIOS network boot parameters

iPXE vs Standard PXE

Standard PXE is hardcoded into the firmware of the network card and is strictly limited to using TFTP. This is where iPXE comes in.

iPXE is an open-source network boot firmware that acts as a massive upgrade. When comparing iPXE vs standard PXE, iPXE wins outright in speed and flexibility. Instead of relying on slow TFTP, iPXE can boot over HTTP, iSCSI, SAN, or even a wireless network. Most administrators configure standard PXE to download an iPXE payload, which then takes over to quickly download the actual OS files over an HTTP web server.

Windows Deployment Services Alternatives

Historically, Windows environments relied heavily on WDS (Windows Deployment Services) for network imaging. However, as environments become more mixed and WDS undergoes feature deprecation by Microsoft, many administrators are looking for Windows Deployment Services alternatives.

Some of the most popular and robust alternatives include:

  • FOG Project: A free, open-source Linux-based imaging solution that excels at managing Windows and Linux endpoints.
  • Serva: A lightweight Windows-based PXE server that is incredibly easy to set up for smaller networks.
  • Cobbler: A Linux provisioning server that facilitates the rapid setup of network installation environments.
  • MDT (Microsoft Deployment Toolkit): Often used in tandem with WDS, but can be configured to work with other boot environments to deploy Windows images efficiently.
  • CCBoot: A commercial option commonly used for diskless and network-boot scenarios; see the product overview at CCBoot.com.

Navigating Common Pitfalls and Troubleshooting

Even with a perfect setup, network environments can be unpredictable. Troubleshooting network boot errors requires a logical approach to isolate where the breakdown occurs.

1. The Client Receives No DHCP Address

If the machine boots, spins its wheels, and outputs PXE-E51: No DHCP or proxyDHCP offers were received, the issue is network-level.

  • Solution: Verify that the client is on the correct VLAN. Check if port security or MAC filtering on your switches is blocking the device. Ensure your DHCP server has an active scope with available IP addresses.

2. TFTP Timeout Errors

A PXE-E32: TFTP open timeout error indicates the client got an IP address and knows the TFTP server's IP, but cannot download the bootfile.

  • Solution: Verify your TFTP server configuration for imaging. Ensure the TFTP service is actually running, check firewall rules on the server to ensure UDP Port 69 is open, and verify that the bootfile name specified in DHCP Option 67 exactly matches the file on the server (remember, Linux file systems are case-sensitive).

3. Fixing Secure Boot PXE Issues

With modern hardware, you will frequently run into Secure Boot violations. Secure Boot ensures that only cryptographically signed software can boot on the machine. If you attempt to load a standard open-source iPXE bootloader, the system will halt.

  • Solution: Fixing secure boot PXE issues involves a few options. The quickest, though least secure, method is to disable Secure Boot in the client machine’s UEFI firmware. A better approach for enterprise environments is to use a "shim" bootloader—a small, Microsoft-signed EFI executable that acts as a bridge to load your actual network bootloader. Tools like Ubuntu's MAAS or the FOG project have detailed documentation on implementing signed shims for seamless Secure Boot compatibility.

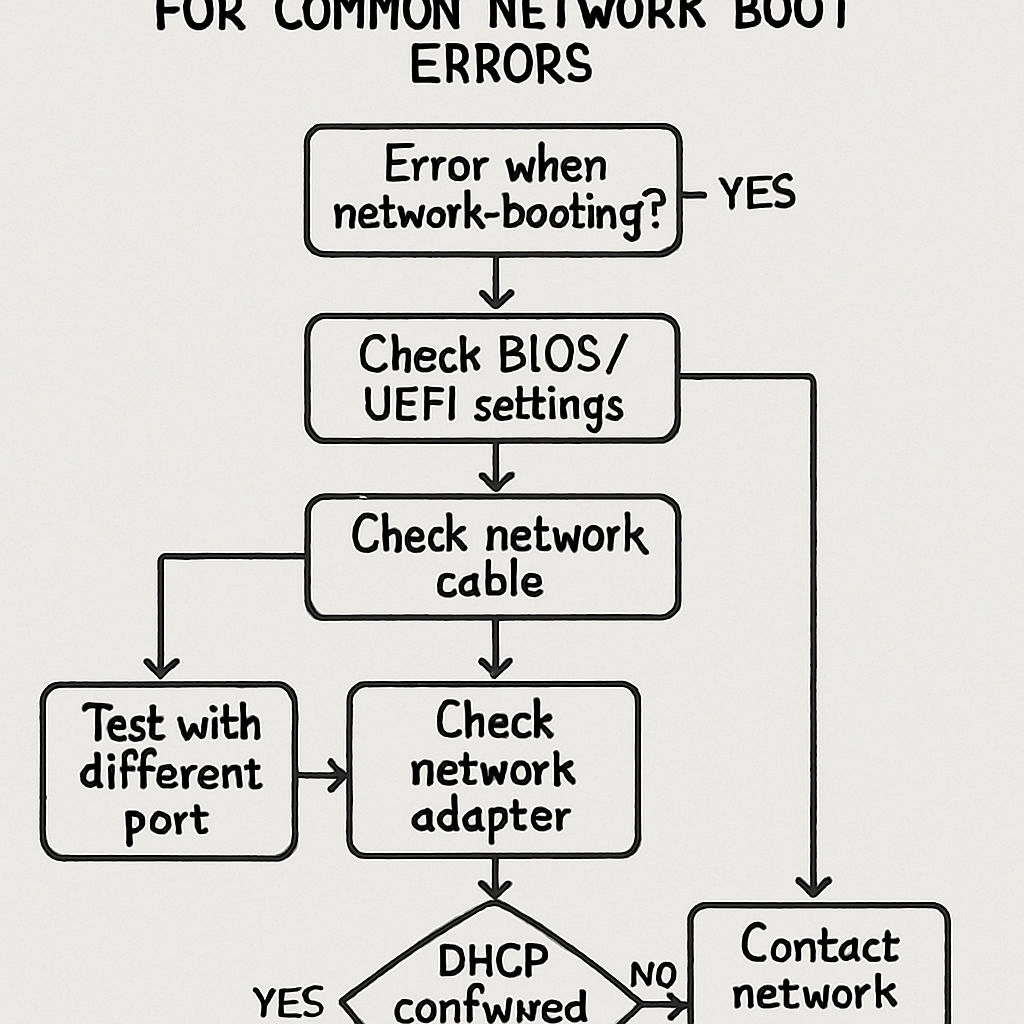

troubleshooting flow chart for common network boot errors

Conclusion

Understanding the architecture and configuration of a PXE boot server is a game-changer for IT administration. By shifting away from manual, localized installations and moving toward automated, network-based imaging, organizations can drastically reduce downtime, enforce standardization, and scale their infrastructure effortlessly.

Whether you are implementing a simple solution for a small lab, exploring Windows Deployment Services alternatives, building diskless workstations with tools such as CCBoot, or architecting the mass deployment of server images for an enterprise data center, the principles of network booting remain the same. Master the dynamic interplay of DHCP, TFTP, and modern bootloaders like iPXE, and you will unlock a new level of efficiency in your IT operations.
