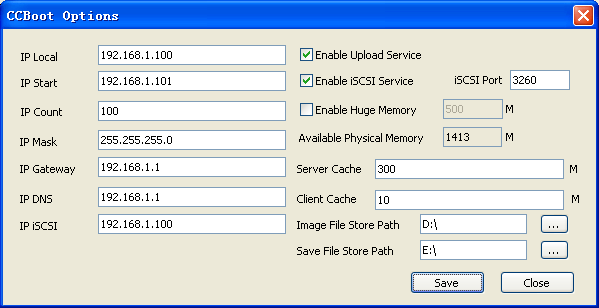

1. IP Local: define the local server ip address.
  2. IP Start: define the first IP address of clients.
  3. IP Count: define the client IP addresses count.
  4. IP Mask: define the IP address mask on the LAN. This option will be pushed into client via DHCP.
  5. IP Gateway: define the gateway on the LAN. This option will be pushed into client via DHCP.
  6. IP DNS: define the DNS server IP address on the LAN. This option will be pushed into client via DHCP.
  7. IP iSCSI: define the iSCSI target IP address. Client will use this information to connect to iSCSI target.Because CCBoot has iSCSI target service inside, normally, the IP iSCSI is same as the IP Local. If you want to use other iSCSI target, you can input the iSCSI target information here.
    The parameters of iSCSI is -
    <iscsi server name or IP address>:<protocol>:<port>:<LUN>:<targetname>

    For example:
    192.168.1.147::3268::iqn.2008.com.linuxce
    means the iSCSI target address is 192.168.1.147 and port is 3268. iqn.2008.com.linuxce is the target name.
  8. Enable Upload Service: enables the upload image service.
  9. Enable iSCSI Service: enables the iSCSI service of CCBoot. iSCSI Port defines the iSCSI port.
  10. Enable Huge Memory: define the huge memory function options. For more information, please refer to "Huge Memory".
  11. Available Physical Memory: display the free memory size.
  12. Server Cache: define the image read cache size.
  13. Client Cache: define the client read/write cache size.
  14. Image File Store Path: define the image file store path on the server.
  15. Save File Store Path: define the client read/write data temp file on the server.
