1. Disk List

Click the "Disk Manager" node on the tree; you can see all the disk drive you have connected to your Server. The new “Disk Manager” also shows the performance of the disk in your server.

Disk Manager List Box

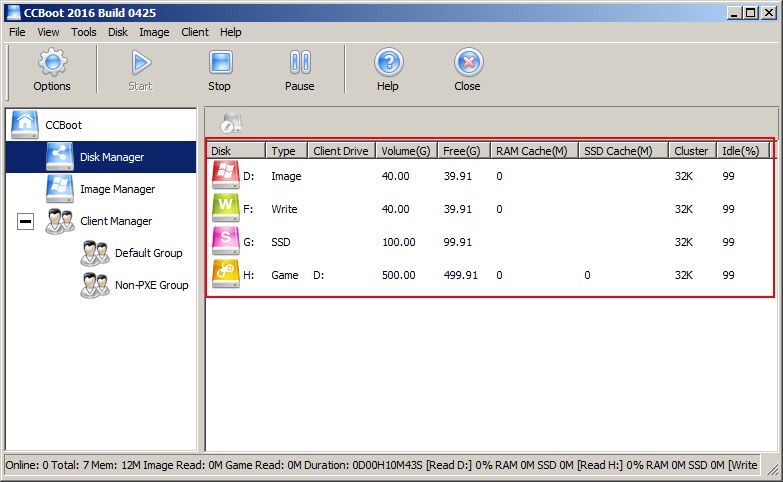

 Figure 1

Disk: Available disk drives on you Server.

Type: Show the type of the disk for each driver (Write, Image, Game, Unused, SSD)

Client Drive: Game disk driver letter in client PC.

Volume (G): Shows the size of the drive in GB.

Free (G): Show the amount of free space available of the drive in GB.

RAM Cache (M): Amount of RAM allocated for each drive. (SSD drive does not have RAM Cache)

SSD Cache: Show the amount of SSD cache set for the drive (Only Game disk has SSD cache available)

Idle (%): Show idleness of the drive. (Higher this is better performance clients will have.)


2. Image Manager

Click the "Image Manager" node on the tree; you can see all the images you have added in your Server. The new “Image Manager”also size of the image as well as the last updated date.

Note. Updated date is shown only if the image has recovery points.

ImageManager List Box

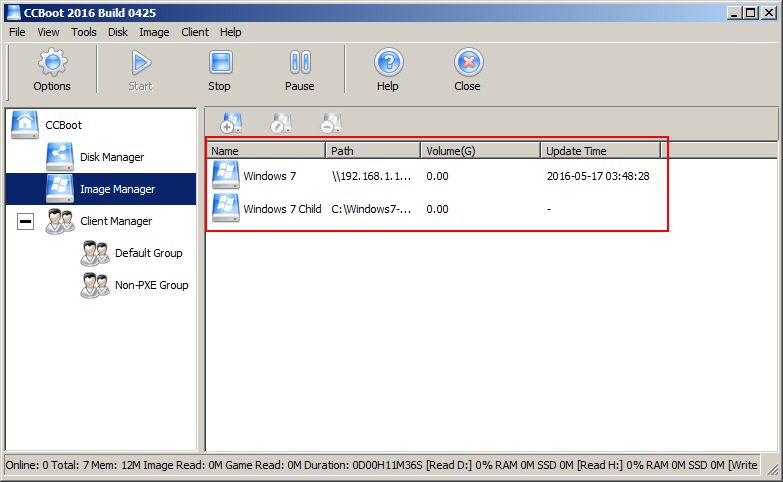

Figure 2

Name: The name of the image

Path: Location of image in the computer

Volume (G): Size of the image file. (VHD internal size.not the size of vhd)

Update Time: Shows the last superclient update of the image. (Image need to have recovery point to show the update time.)


3. Client List

Click the "Client Manager" node in the tree; you can see the client detailed parameters. (If you want to display all the parameters, please select "view all cols" in the "View"menu. Or right click on the column header.)

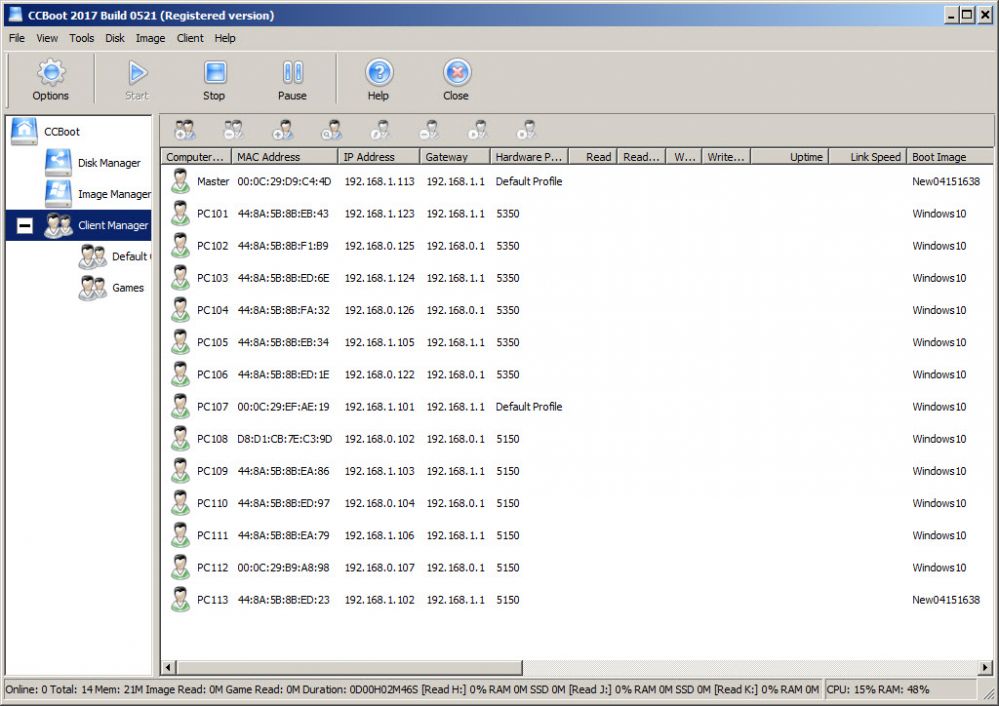

Figure 3

Some of the list items are hidden in the above picture but are listed below

Computer Name: The computer name of the client.

MAC Address: The MAC address of the client.

IP Address: Server assigned client IP address.

Gateway: Gateway assigned to the Client.

Read: The amount of data read by the client.

Read Speed: Read Speed of client data.

Write: Amount of Write-Back data from client.

Write Speed: The client Write-Back speed.

Uptime: Displays client’s up time since client DHCP and PXE download.

Link Speed:Displays client’s Ethernet ports speed

Boot Image: Displays the client’s boot image.

Boot Server: Server's IP address.

Enable: Allows the client to boot from the server.

GPXE: Displays the PXE file name.

Write-back Path: Write-back path of the client.

Client Cache: Client writes cache at local.

CPU: Displays client’s CPU Model

Video Card: Displays client’s graphics card Model

Motherboard: Displays client’s Motherboard Model

RAM: Displays client’s RAM size.

CPU Temperature:  Shows the client PC CPU temperature

GPU Temperature: Shows the client PC Graphics card temperature

Active Process: Shows the currently active process name on the client PC

Hardware Profile: Shows the hardware profile assigned to the client PC

Status: Show the client's status Online/Offline
